The aesthetically appealing ceiling-light combination comprising the POLYLAM vertical baffle system and integrated linear luminaires delivers an almost unlimited range of design options. All versions of linear lighting are efficient and powerful. A great combination formed by pairing acoustic properties and the scope for printing patterns on the baffle ceiling.
- Some linear luminaires can be provided in Tunable White
- Ceiling and lighting as a visual unit

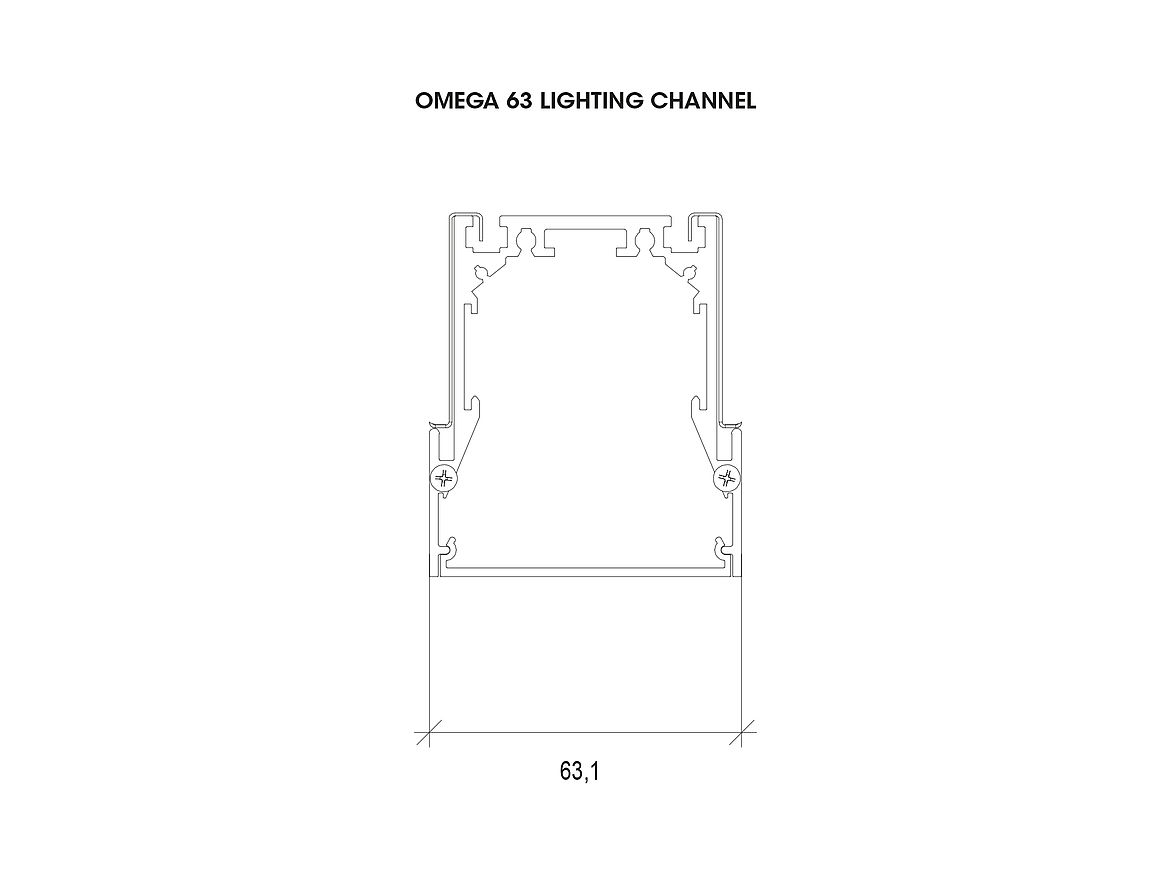

POLYLAM 63 vertical baffle ceiling with OMEGA 63 lighting channel
Dimensions and luminaire details
Baffle width: 63 mm
Baffle length: 300 – 3800 mm (special up to 4000 mm)
Baffle height: 100 – 380 mm
Total build height: Baffle height + ~ 63 mm
Modular spacing of the lamella: Baffle width + 50 mm
Light colour: 3000K, 4000K on demand in Tunable White (2700 – 5000K)
Light output: 4240 lm/m (3000K), 4460 lm/m (4000K)
Dimmability: DALI dimmable
Power supply: 230 V/50 Hz
IP 20
Protection class I
Material and surface
Baffle ceiling: galvanised steel sheet (standard), white powder-coated (RAL 9016 matt). Other (RAL) colours and surfaces with printing, e.g. wood grain finish (DUROPLAN W), or anodised aluminium (DUROPLAN A050, DUROPLAN A080) on request.
Lighting channel housing: Aluminium
Lighting channel cover: PMMA opal
Acoustics and perforation
The absorption surfaces can be adapted to suit building requirements using different baffle spacings, heights and widths as well as with different fillings (mineral wool in a PE sack or polyester fleece).
Baffles can be perforated along their flanks (standard: RV-L6).
Fire behaviour
Baffles: Steel sheet (powder-coated, smooth or perforated): DEFEO with fire protection classification A2-s1.dO (non-combustible)

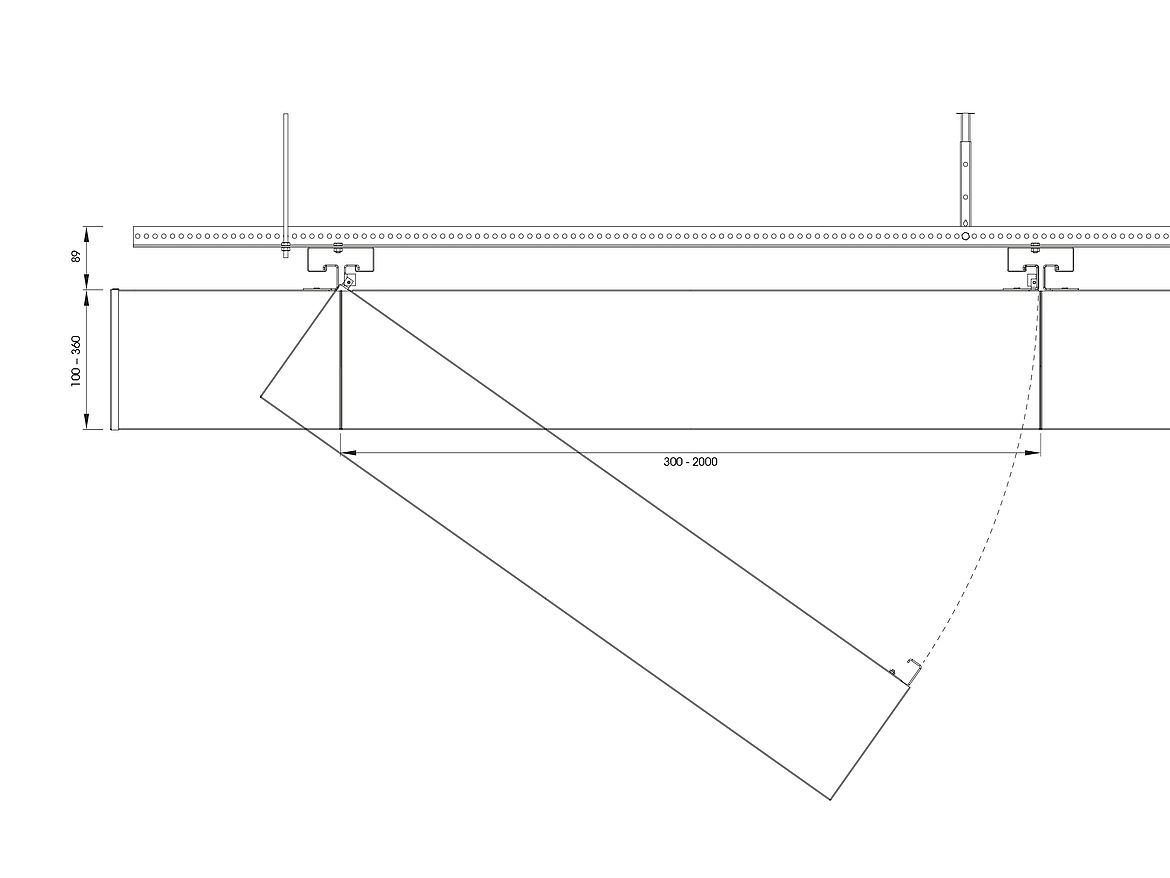

POLYLAM-KS 63 vertical baffle ceiling with OMEGA 63 lighting channel
Dimensions and luminaire details
Baffle width: 63 mm
Baffle length: 300 – 2000 mm
Baffle height: 100 – 360 mm
Total build height: Baffle height + ~ 89 mm
Modular spacing of the lamella: Baffle width + 20 mm
Light colour: 3000K, 4000K on demand in Tunable White (2700 – 5000K)
Light output: 4240 lm/m (3000K), 4460 lm/m (4000K)
Dimmability: DALI dimmable
Power supply: 230 V/50 Hz
IP 20
Protection class I
Material and surface
Baffle ceiling: galvanised steel sheet (standard), white powder-coated (RAL 9016 matt). Other (RAL) colours and surfaces with printing, e.g. wood grain finish (DUROPLAN W), or anodised aluminium (DUROPLAN A050, DUROPLAN A080) on request.
Lighting channel housing: Aluminium
Lighting channel cover: PMMA opal
Acoustics and perforation
The absorption surfaces can be adapted to suit building requirements using different baffle spacings, heights and widths as well as with different fillings (mineral wool in a PE sack or polyester fleece).
Baffles can be perforated along their flanks (standard: RV-L6).
Fire behaviour
Baffles: Steel sheet (powder-coated, smooth or perforated): DEFEO with fire protection classification A2-s1.dO (non-combustible)
