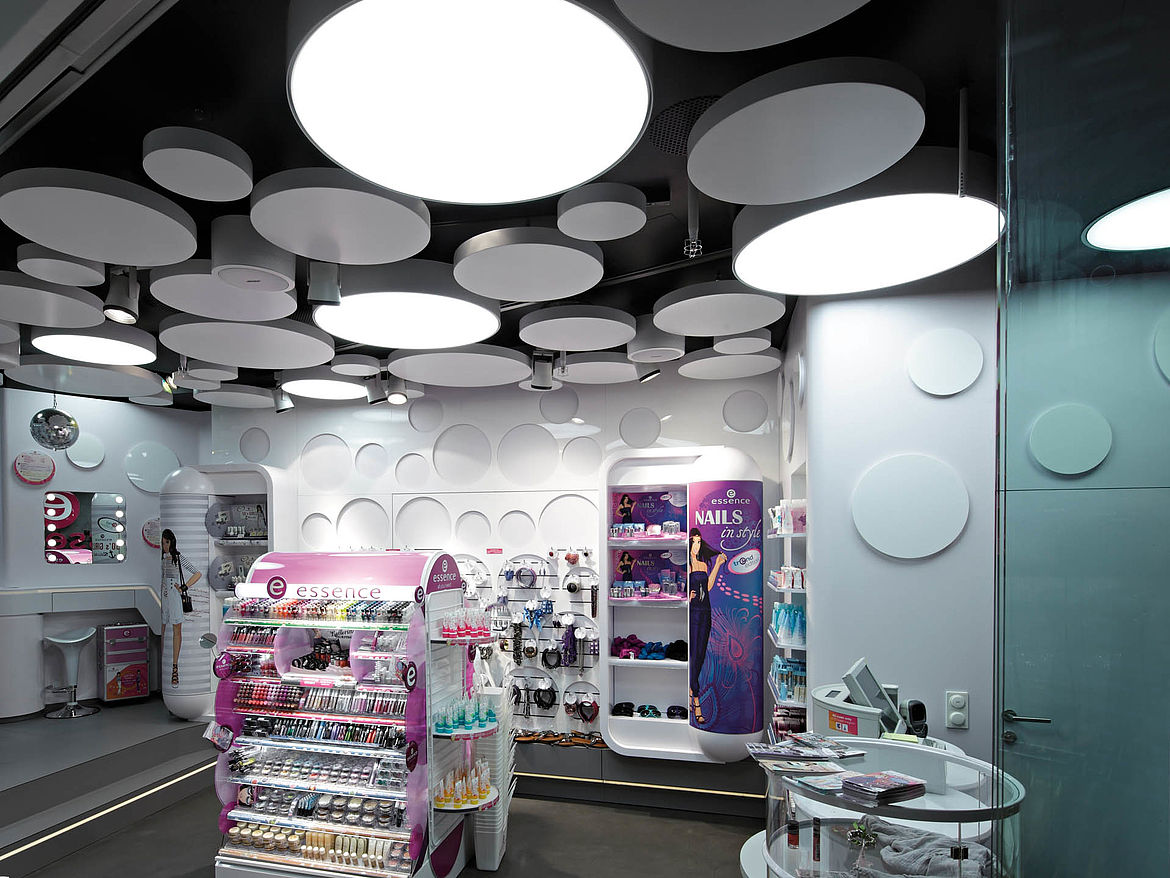

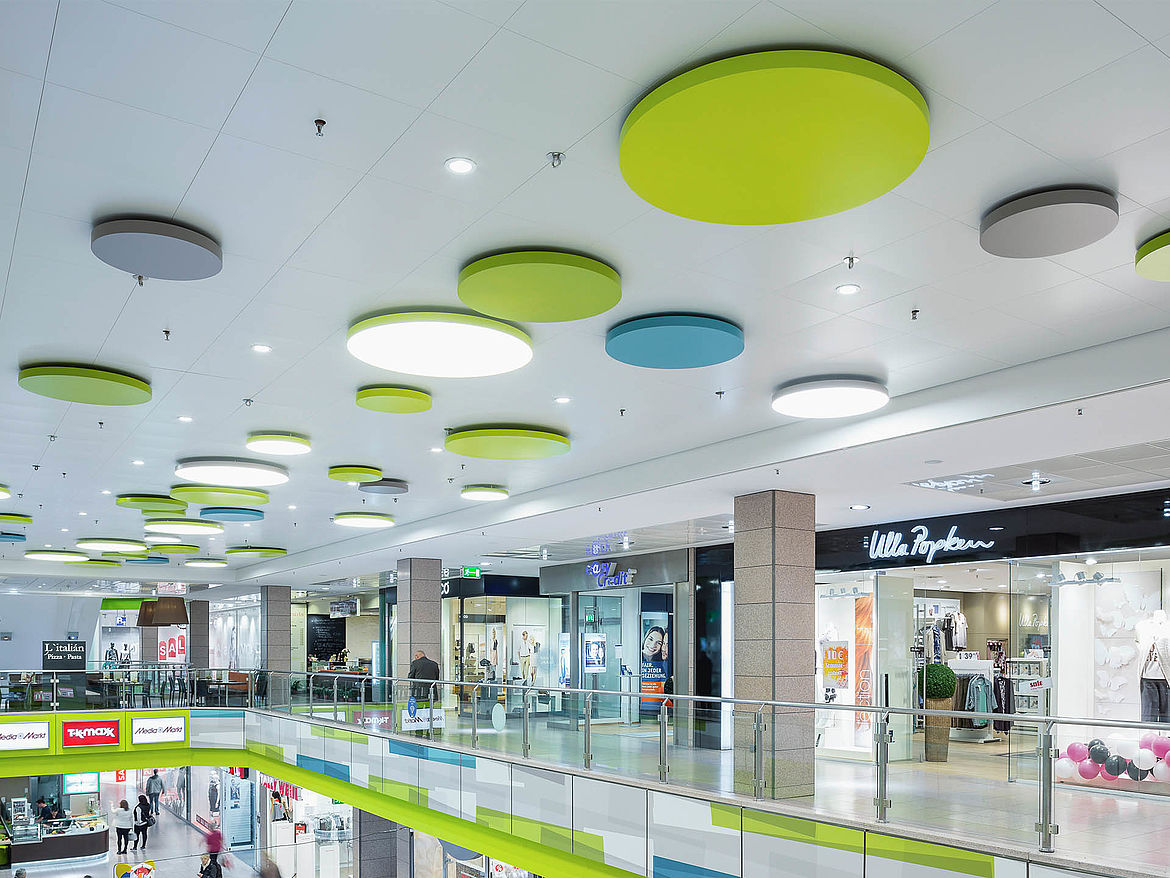

The esthetic ceiling-lighting combination TOMEO-R integrates itself perfectly in rooms with a particular atmosphere. The filigree elements are perfectly matched and individual designs can be created using different sizes, shapes and colours. Acoustic functions, smoke extractors and sprinklers are inconspicuously integrated into the ceiling. The LUMEO-R LED-illuminated surfaces provide homogeneous illumination.
- Combination possible with daylight tubes
- Ceiling elements can be mounted on threaded rods or can be suspended on cables
- TOMEO-R is also available as a thermal raft ceiling
TOMEO-R CEILING LIGHTING COMBINATION
Dimensions and luminaire details
Ceiling element:
Diameter: 293, 593, 893, 1200 mm
Height: 60 mm
LUMEO-R illuminated surface:
Diameter: 594, 894, 1194 mm
Height: sight line 60 mm + 25 mm shadow gap (appliance mounting)
3000K, 4000K, Tunable White (2700-5000K)
Luminaire output 594 mm: 10120 lm (3000K) / 10600 lm (4000K)
Luminaire output 894 mm: 19200 lm (3000K) / 20120 lm (4000K)
Luminaire output 1194 mm: 28480 lm (3000K) / 29840 lm (4000K)
Material and surface
TOMEO-R: sheet steel
LUMEO-R frame: anodised aluminium
All elements can be powder coated in any RAL colour. Standard: RAL 9016 matt DUROPLAN Type 1
Acoustics and perforation
TOMEO-R: Perforation (standard: RD-L30) and version with back lined with acoustic mat also possible. Ceiling element: various fillings can be used as an absorption material, e.g. fibre-clad mineral wool.
Printing
Powder-coated ceiling elements, also printable with visuals and textures

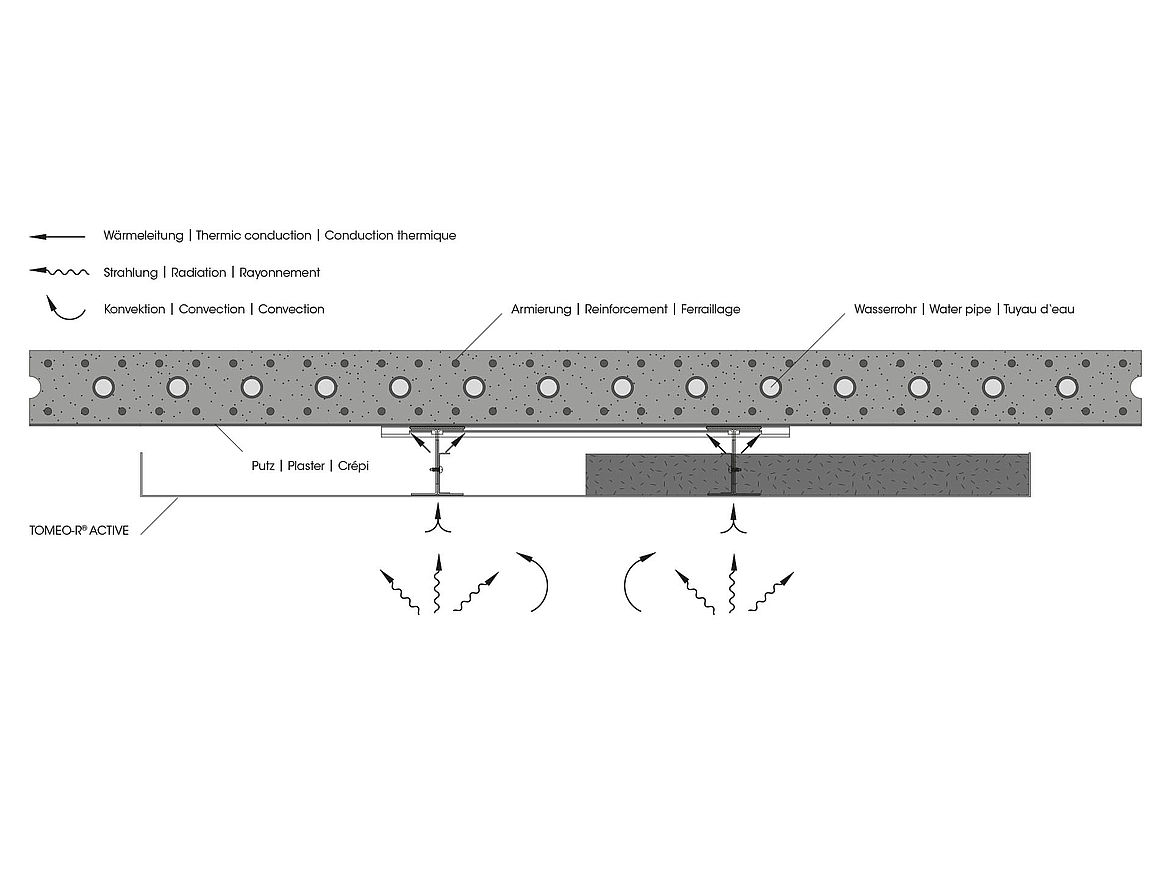

TOMEO-R ACTIVE ceiling element
Dimensions
Diameter: 293, 593, 893, 1200 mm
Height: 60 mm
Material and surface
Sheet steel Additional aluminium profiles with thermally conductive gel can be fitted to the back
Acoustics and perforation
TOMEO-R ceiling element: various fillings can be used as an absorption material, e.g. fibre-clad mineral wool. Perforation (standard: RD-L30) and version with back lined with acoustic mat also possible.
Printing
Powder-coated ceiling elements, also printable with visuals and textures
