GETINCELL OPEN-CELL CEILING

Double-blade open-cell ceiling with louvres in an interior shade of green

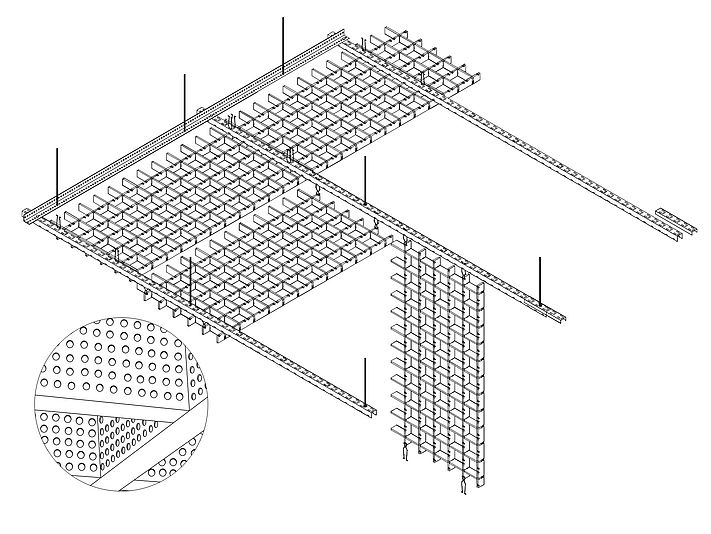

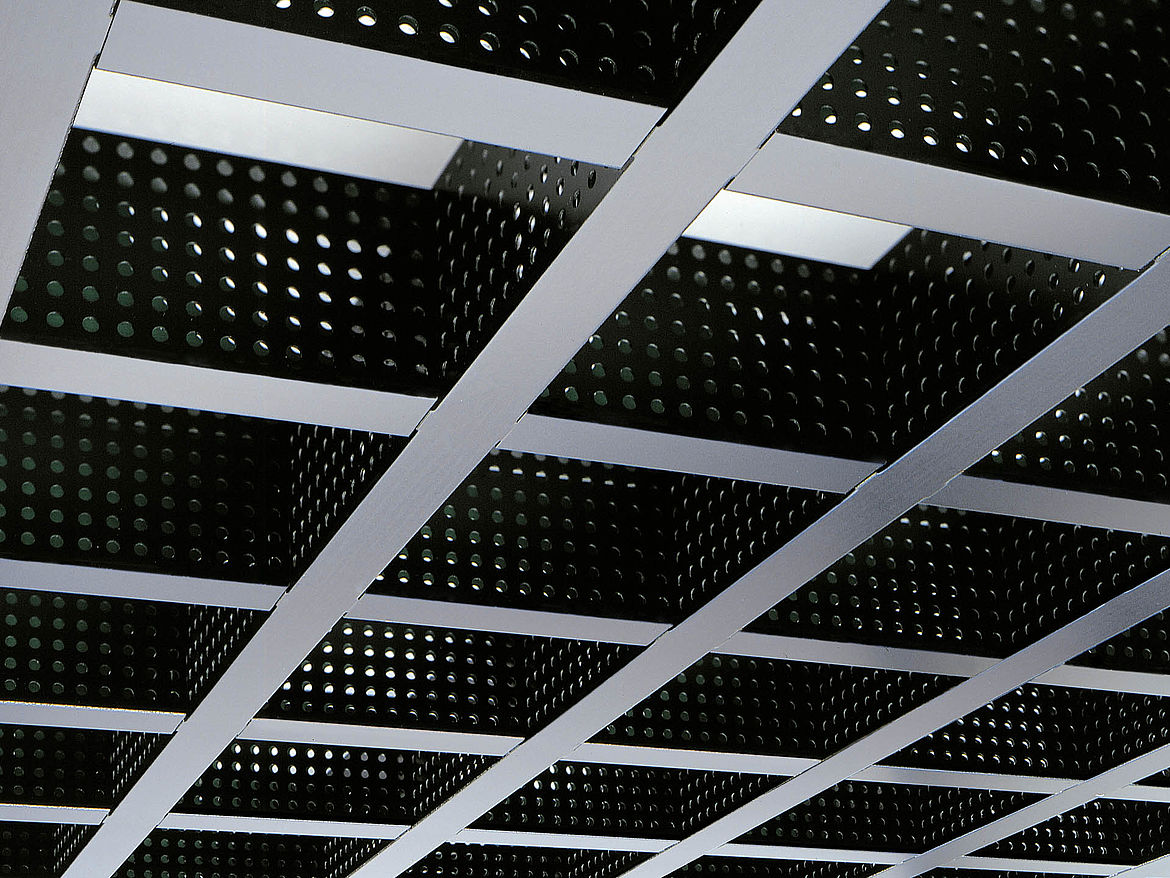

GETINCELL is an aesthetically very attractive double-blade open-cell ceiling with a compellingly lightweight, airy design. The hollow parallel louvres, closed at the bottom with either green, fuchsia or blue interior colours create a stylish impact when used in conjunction with perforation and light.

  • All panels can be hinged down.
  • A system that is easy to install
  • Integrated carrier

Technical Information

Dimensions

Width x Height: 4 x 42 mm
Panels: 1200 x 600 mm, 1250 x 625 mm
Cell dimension: Variable (50-150 mm)

Material and surface

Anodised aluminium (edges not coated)
External colour: white, black, RAL 9006. Other colours on request.
Interior colour: Green

Perforation:

Micro-perforation: Ø=1.5 mm, holes in offset rows, free cross section: 11%
Perforation: Ø= 2.5 mm, holes in straight rows, free cross section=19.6%

Acoustics

Noise absorption: in conjunction with broad-band absorber dur-SONIC® TUBE
w=0.80; NRC=  up to 0.75 is possible)

Dimensions

Width x Height: 9 x 40 mm
Panels: 1200 x 600 mm, 1250 x 625 mm
Cell dimension: Variable (50-150 mm)

Material and surface

Anodised aluminium (edges not coated)
External colour: white, black, RAL 9006. Other colours on request.
Interior colour: Green

Perforation:

Micro-perforation: Ø=1.5 mm, holes in offset rows, free cross section: 11%
Perforation: Ø= 2.5 mm, holes in straight rows, free cross section=19.6%

Acoustics

Noise absorption: in conjunction with broad-band absorber dur-SONIC® TUBE
w=0.80; NRC=  up to 0.75 is possible)

Dimensions

Width x Height: 15 x 37 mm
Panels: 1200 x 600 mm, 1250 x 625 mm
Cell dimension: Variable (50-150 mm)

Material and surface

Anodised aluminium (edges not coated)
External colour: white, black, RAL 9006. Other colours on request.
Interior colour: Green

Perforation:

Micro-perforation: Ø=1.5 mm, holes in offset rows, free cross section: 11%
Perforation: Ø= 2.5 mm, holes in straight rows, free cross section=19.6%

Acoustics

Noise absorption: in conjunction with broad-band absorber dur-SONIC® TUBE
w=0.80; NRC=  up to 0.75 is possible)
