VARIO 3 LINEAR LOUVRE

Elegant design of rod-shaped ceiling

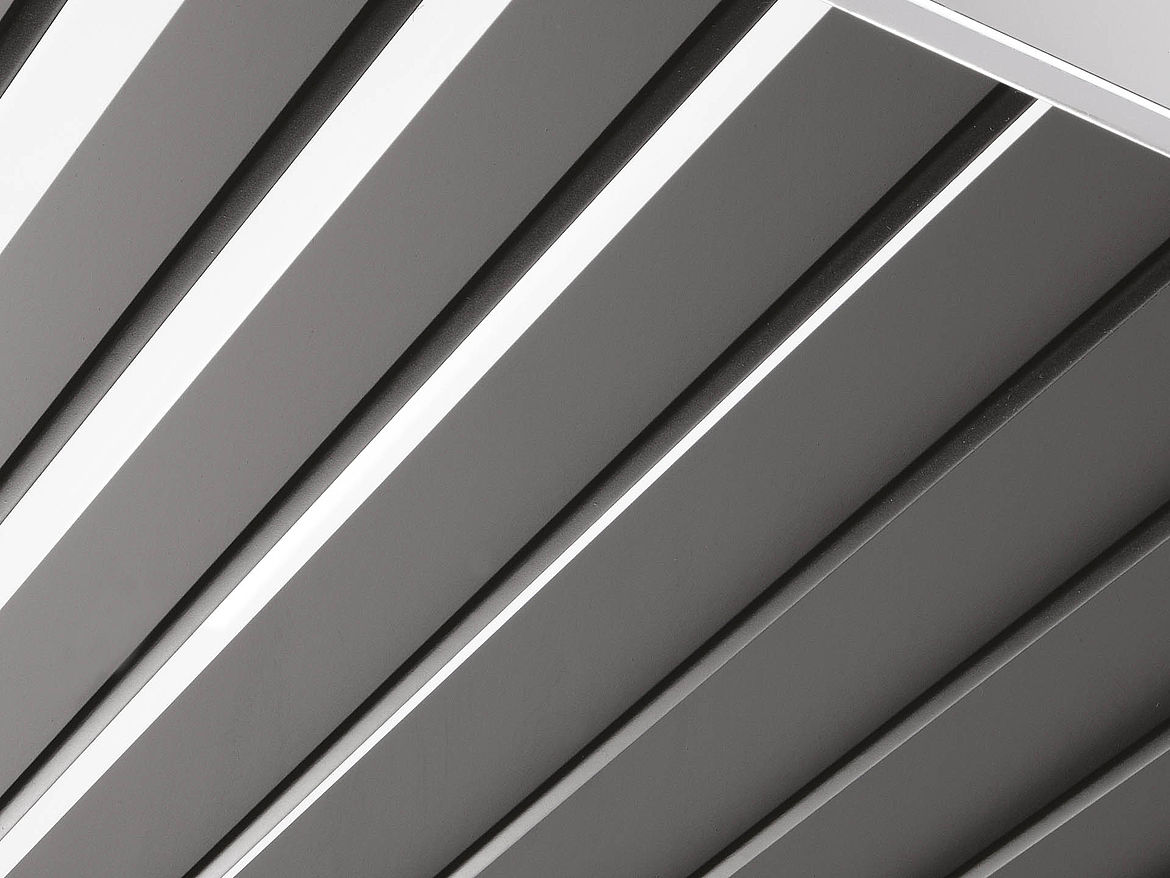

VARIO 3 is a rod-shaped ceiling of high quality, with an elegant and contemporary design. The special cutaways and sharp edges assure optimum linear alignment of the louvre and perfect rigidity. The louvre can be arranged in rows or in a modular fashion, enabling their texture to be highlighted.

  • Countless design options
  • Systems for air-conditioning, sprinklers, smoke alarms or luminaires can be installed or integrated in the ceiling.

Technical Information

Dimensions

Traverse:

U94 carrier, T15/ T24 carrier rail, integrated carrier rail

Panels

600 x 600mm (T15/T24 carrier)
1200 x 600mm (U94, integrated carrier)

VARIO 3  louvre

Web width x Hight: 3 x 20 mm
Step: 15-40mm

Perimeter louvre

Variant 1: Web width x Height: 4 x 42 mm
Variant 2: Web width x Height: 9 x 40 mm
Variant 3: Web width x Height: 15 x 37 mm

Traverses

Web width x Height: 9 x 40 mm
Distance: approx. 300mm

Material and surface

Aluminium. Surface strip-painted
Louvers: white, black, RAL 9006
Perimeter louvers: white, black, RAL 9006, high-gloss silver
Traverses: black

Acoustics

Noise absorption: in conjunction with broad-band absorber dur-SONIC® TUBE (αw=  0,80; NRC=  0,75)

Downloads

VARIO 3

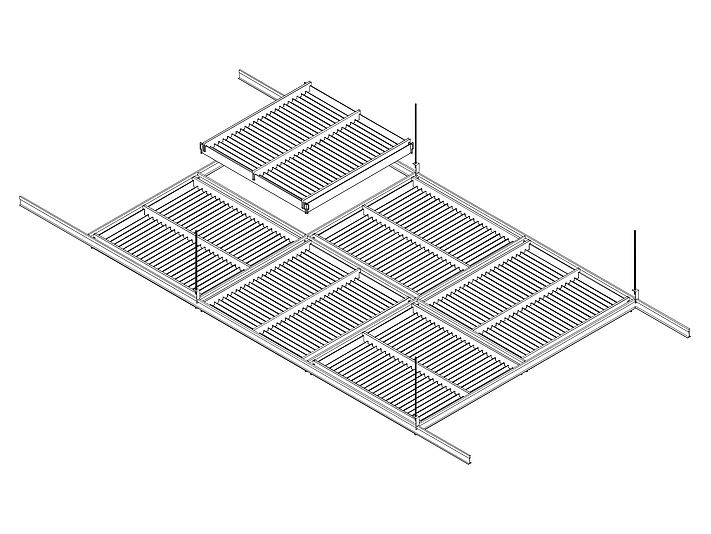

VARIO 3 T15/T24

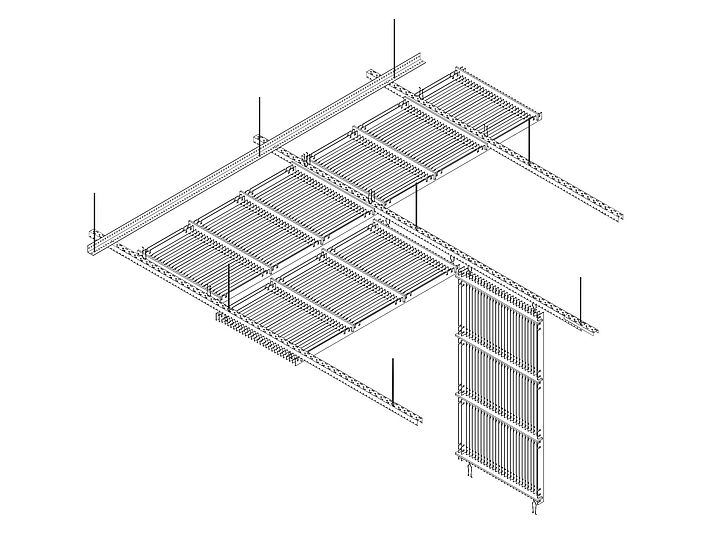

VARIO 3 U94
