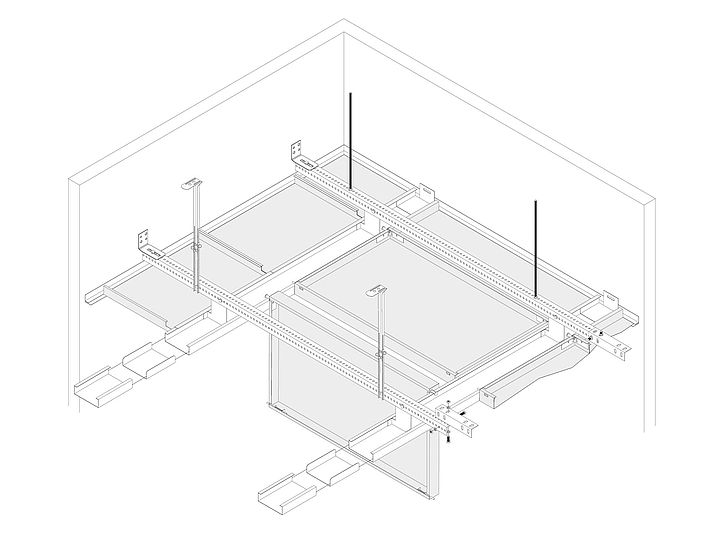

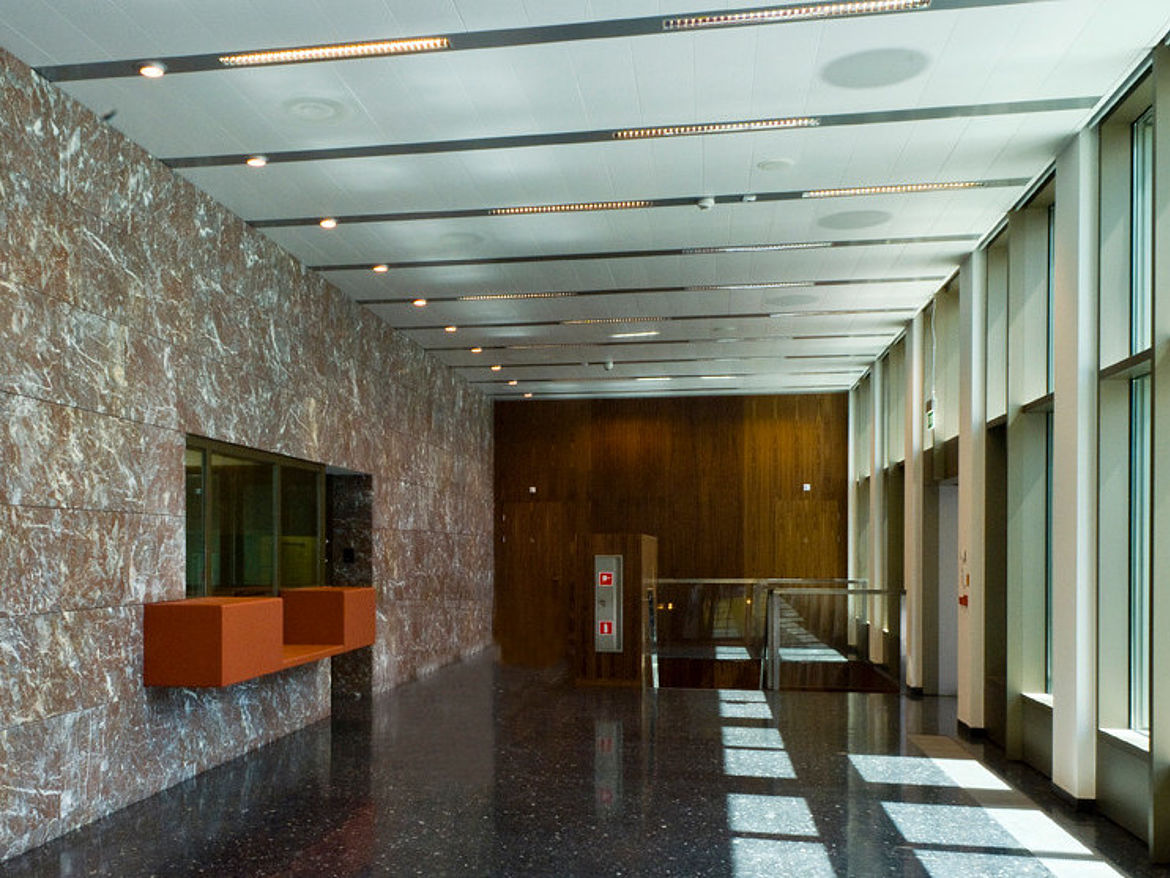

The S5 linear C-channel system has a visible, parallel sub-structure. This visible sub-structure also enables rooms to be divided up flexibly. Where required, movable partition walls are secured to the parallel C-channel beams. Optionally, the system can be obtained with hingeable and movable properties.
- Partially available with cooling meanders as a cooling ceiling
- Can be dismantled easily and without the need for tools.
- Partially suited for pressure-tight ceiling applications
S5 LINEAR C-CHANNEL SYSTEM
Dimensions
Length:
5-100/150 and 5.4 K-BR: ≤3500 mm
5.6 FH and 5.7 KS-BR: ≤2000 mm
Width: ≤1300 mm
Recommended surface area:
5-100/150: ≤3 m²
S5.4 K-BR: ≤2.5 m²
5.6 FH and 5.7 KS-BR: ≤2 m²
Material and surface
Galvanised steel plate, aluminium: standard powder coating, white (RAL 9016 matt DUROPLAN Type 1). Coat thickness: approx. 60 microns Other powder coatings are possible.
Aluminium: coil anodised or mirror polished.
Stainless steel: brushed or mirror polished.
Acoustics and perforation
Standard perforation: RG-L15. Other perforations are possible.
As standard, sound absorption with black acoustic fleece (αw= 0,70; NRC= 0,70)
Printing
Powder-coated cut sections, also printable with motifs and textures
Fire behaviour
Standard, smooth or perforated: A2-s1.dO in acc. with EN13501-01 (non-combustible)
