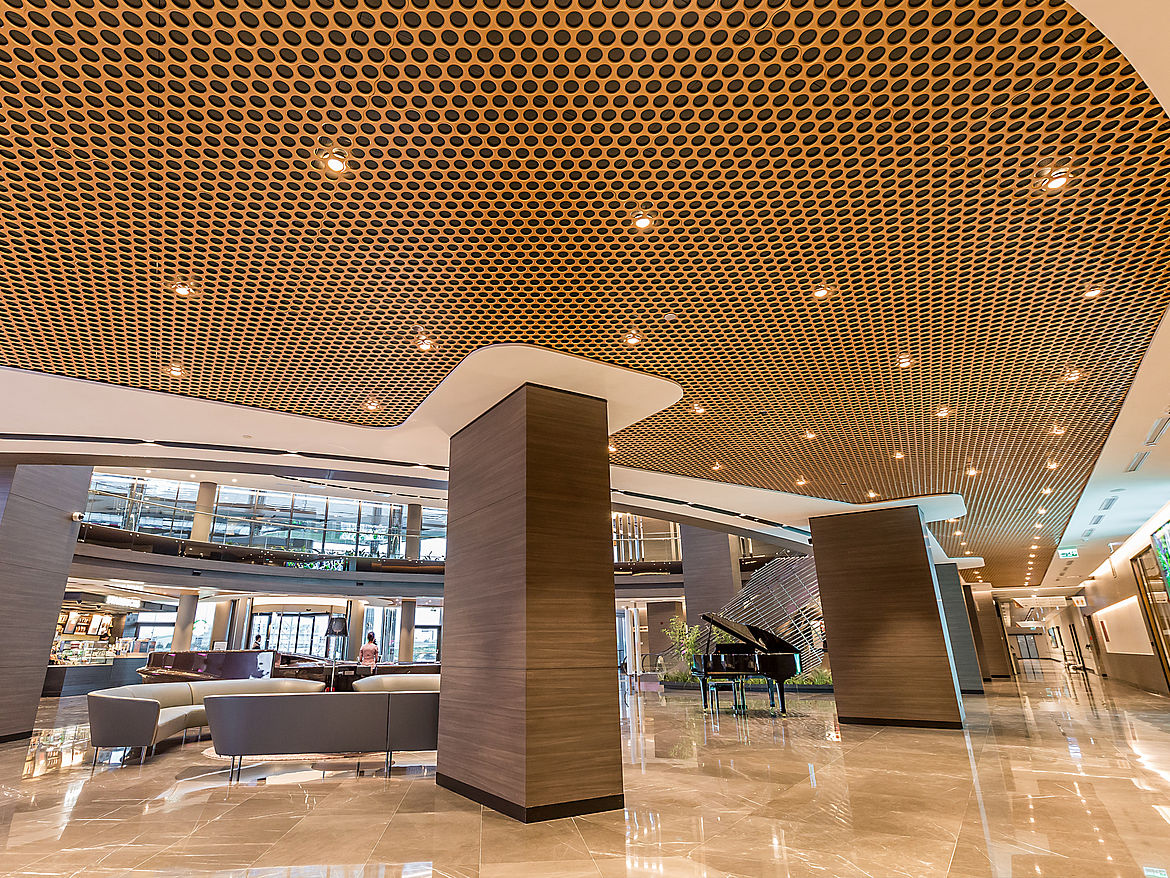

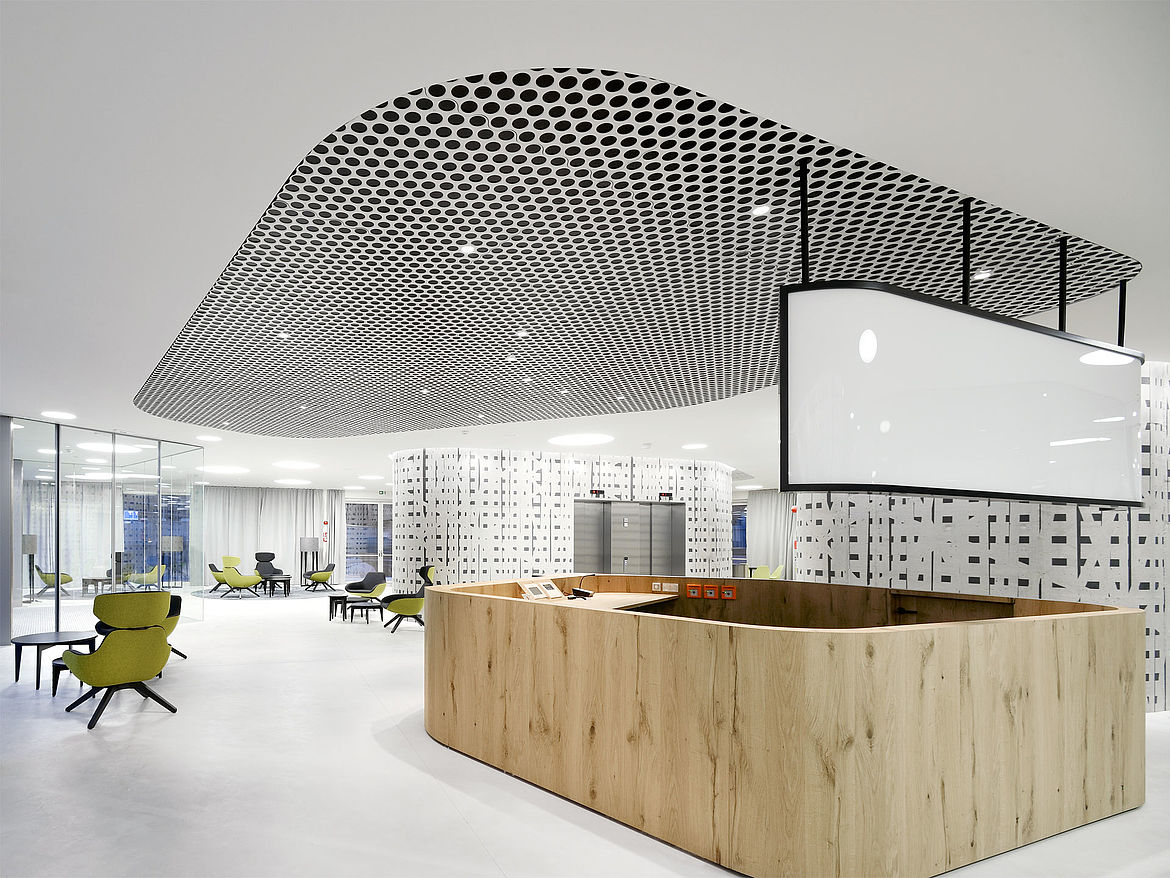

By means of magnets and retaining cables from the sub-ceiling, the organic shapes of LOOP fit superlatively into this open concept.

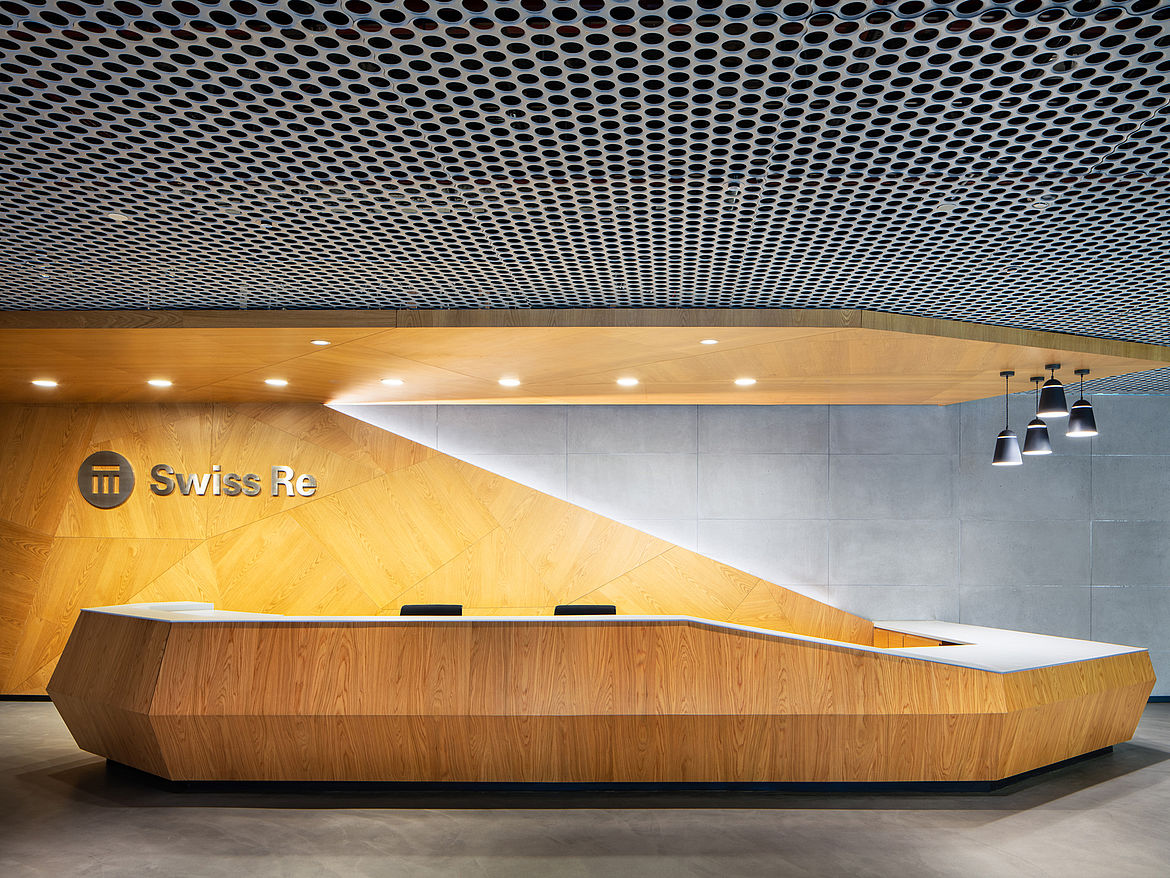

Swiss Re Bengaluru [IN]: for its employees and customers, this insurance company has created stylish encounter areas in its spacious and extensive foyer and leisure area.
LOOP metal ceiling elements made of 2 mm aluminium; designed as a TYPE 2 suspended system
Powder-coated in gold bronze, this design ceiling creates a high-end and aesthetically pleasing atmosphere in these interior spaces.
Matching to the living areas, LOOP and its characteristic curved shapes alternates with the space system S4 with modern round perforations.
For optimum acoustics, there is the powder-coated matt-black and perforated backing of the LOOP ceiling.
A perfect symbiosis: PUNTEO-J60 LED downlight blend harmoniously in the eminently stylish lines of round apertures in the LOOP design ceiling. This creates an aesthetic ceiling pattern that appears to be three-dimensional. This integrated luminaire with intense luminosity guarantees brilliant light quality and soft light transitions.
- Ceiling pattern appears endless with its concealed joints.
- Available as a screwed system (Type 2) or as a positive-hold magnet connection (Type 3)
- As an option, Type 3 can also be supplied as a cooling ceiling in the dur-COOLTEC ceiling

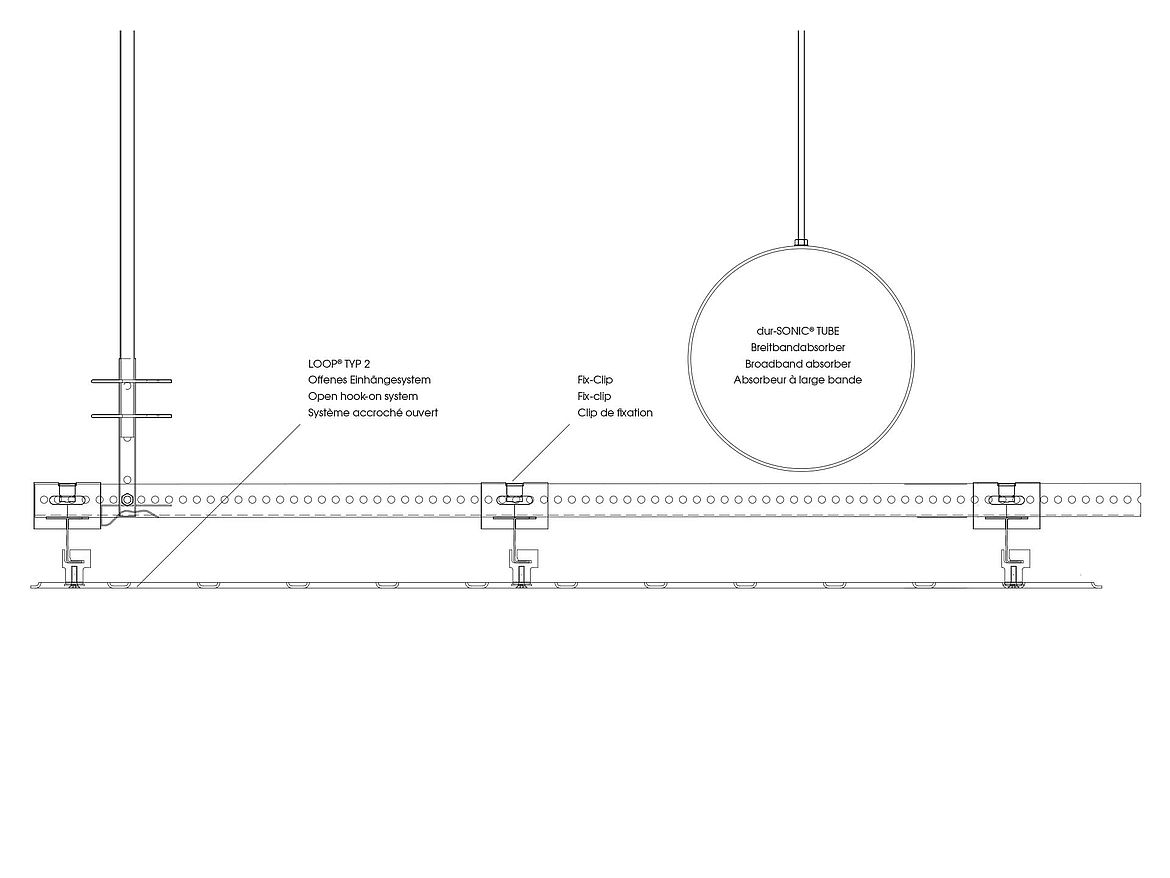

LOOP TYPE 2 + PUNTEO-J60

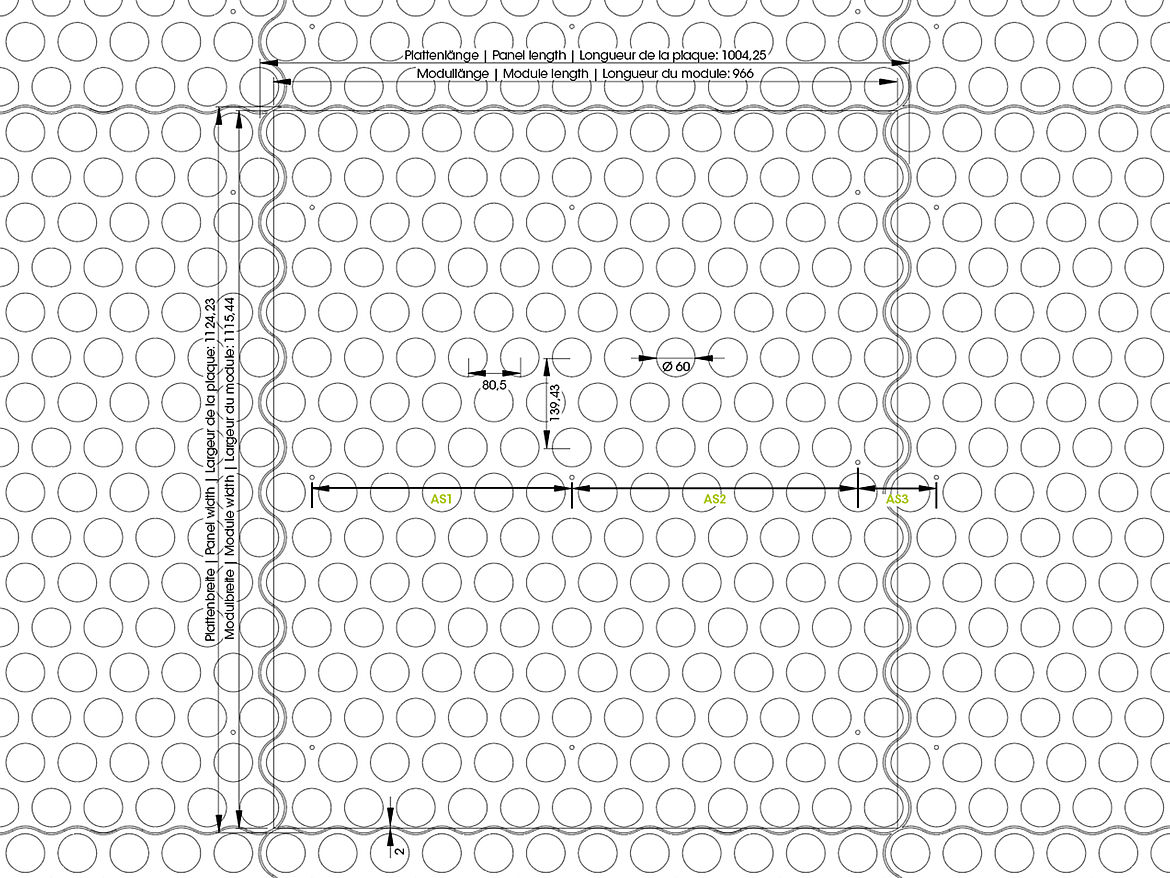

Dimensions LOOP metal ceiling
Panel size: 1124.23 x 1004.25 mm
Module size: 1115.44 x 966 mm
Joint width: 2 mm
Material and surface
LOOP TYPE 2: Aluminum: 2 mm thick. Anodized in DUROPLAN A050 or powder-coated in RAL colors on request
PUNTEO-J60: Reflector with a high-sheen coating; shades: black, white
Acoustics and perforation
Through a combination with and the installation of dur-SONIC TUBE made of powder-coated perforated steel plate can be provided with sound-absorbent fleece.

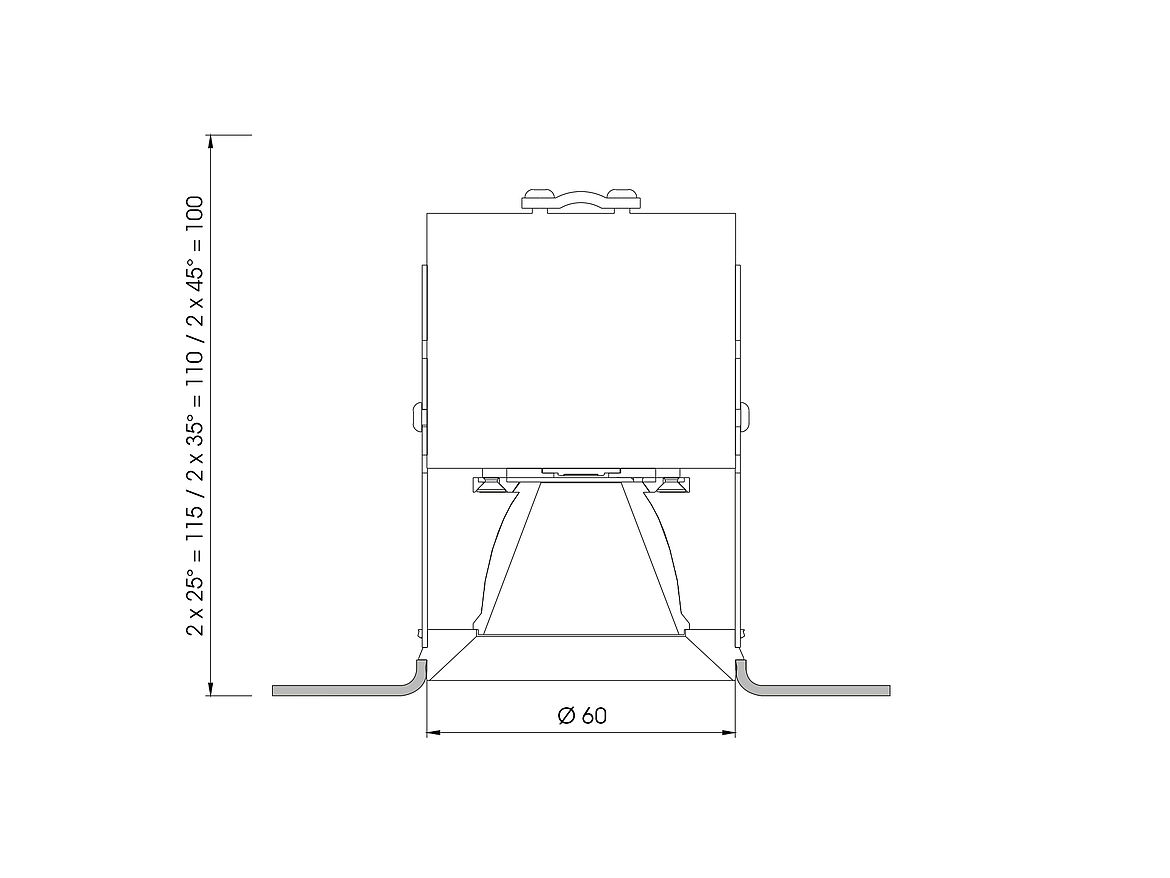

Luminaire details for PUNTEO-J60 for mounting from above (S03)
Diameter PUNTEO-J60: 60 mm
Height of PUNTEO-J60: 91 mm (excl. 60 mm ceiling void)
Light colour: 2700 – 5000 K, CRI > 90
LED output: 1500 lm
Optical efficiency: 82 % (2x25°) | 91 % (2x35°) | 94 % (2x45°) | 85 % (asymm.)
Light distribution: 2x25° | 2x35° | 2x45° | asymm. (wallwashers)
Dimmability: DALI dimmable (DT6 or DT8)
LED driver: external in ceiling cavity
Power supply: DC driver; 2 x 350 mA CC | 2 x 24 Vf
IP 20
Protection class III (excl. LED driver)

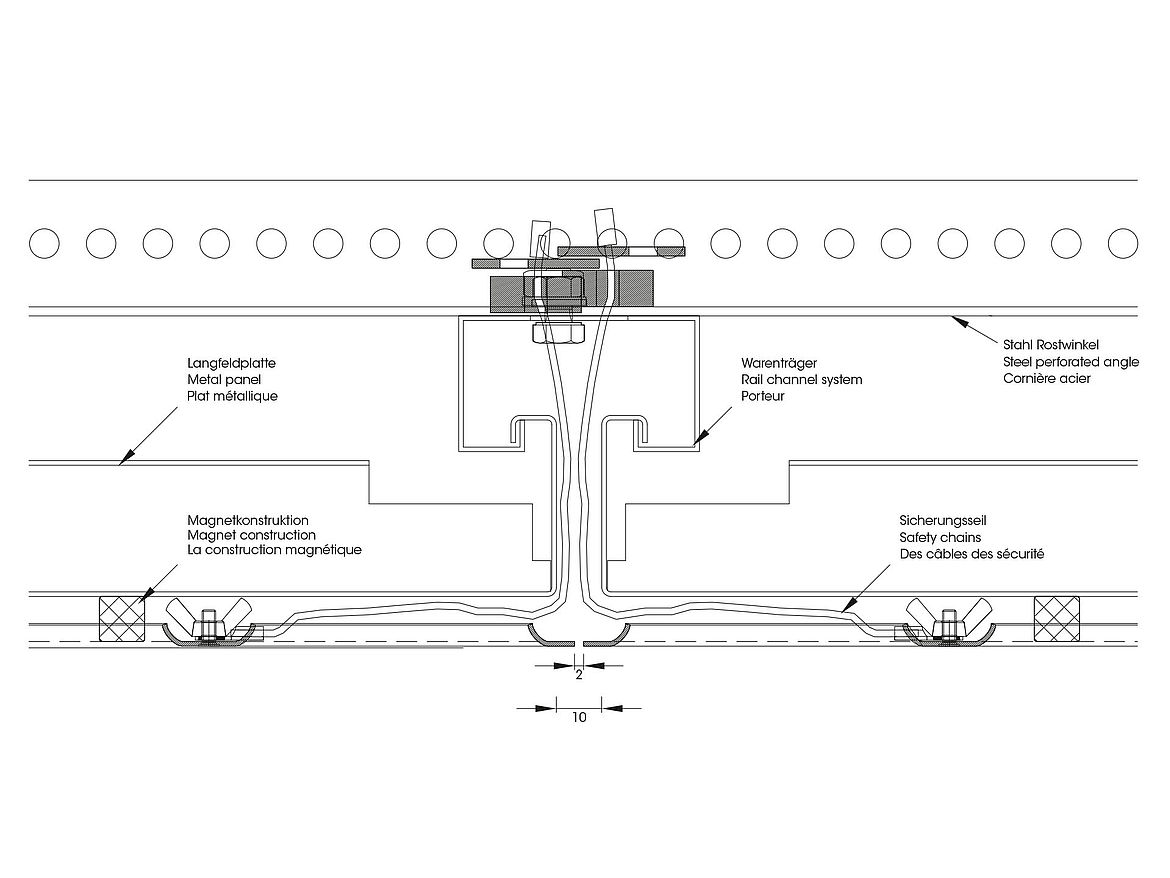

LOOP TYPE 3 + PUNTEO-J60

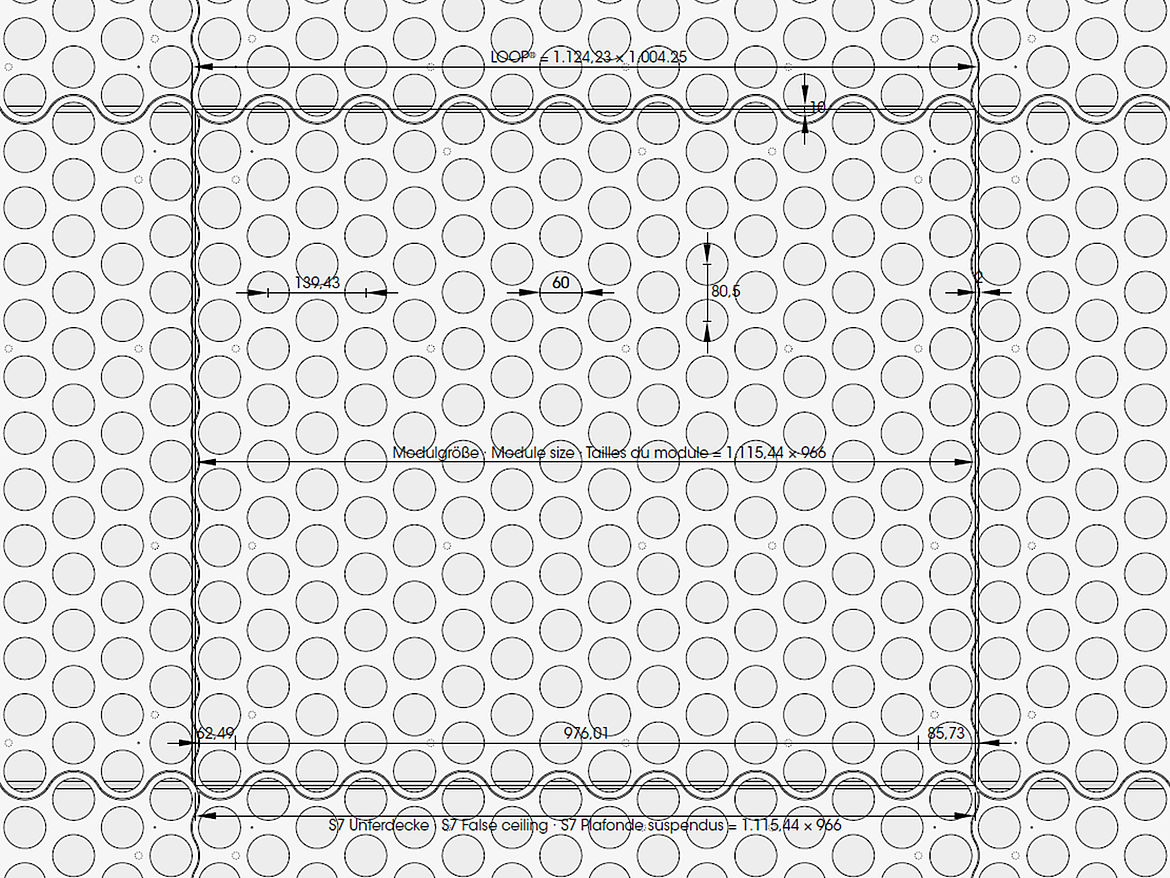

Dimensions LOOP metal ceiling
Panel size: 1124.23 x 1004.25 mm
Module size: 1115.44 x 966 mm
Joint width: 2 mm
Dimensions S7 false ceiling
Panel size : 1115 x 956 mm
Joint width: 10 mm
Material and surface
LOOP TYPE 3: sheet steel: 1 mm thick, powder-coated in RAL colors on request; false ceiling available in same color or in a different color.
PUNTEO-J60: Reflector with a high-sheen coating; shades: black, white
Acoustics and perforation
Acoustically effective in the standard version due to the false ceiling as an S7 rectangular metal panel.

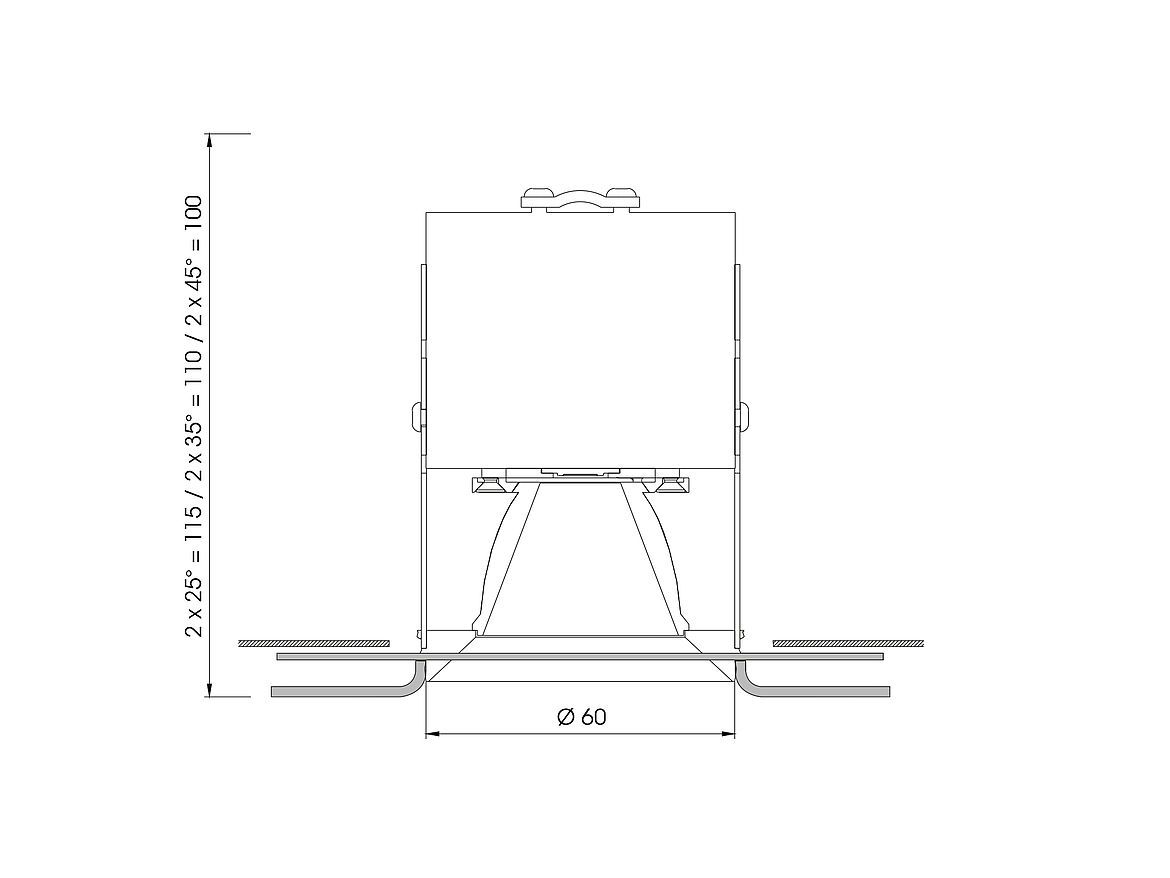

Luminaire details for PUNTEO-J60 (16W) with tunable white
Diameter PUNTEO-J60: 60 mm
Height of PUNTEO-J60: 91 mm (excl. 60 mm ceiling void)
Light colour: 2700 – 5000 K, CRI > 90
LED output: 1500 lm
Optical efficiency: 82 % (2x25°) | 91 % (2x35°) | 94 % (2x45°) | 85 % (asymm.)
Light distribution: 2x25° | 2x35° | 2x45° | asymm. (wallwashers)
Dimmability: DALI dimmable (DT6 or DT8)
LED driver: external in ceiling cavity
Power supply: DC driver; 2 x 350 mA CC | 2 x 24 Vf
IP 20
Protection class III (excl. LED driver)
A perfect symbiosis: PUNTEO-J60 LED downlight blend harmoniously in the eminently stylish lines of round apertures in the LOOP design ceiling. Quick and easy ceiling lighting installation using the LOOP adapter. Check out our new installation video!
