The lay-on/hook-on systems FS 4.2 RHOMBOS and FS 4.5 KS RHOMBOS are expanded metal ceilings that were designed specifically for very wide vestibules and vestibule extensions. The concealed suspension construction creates a ceiling with a uniform appearance. The FS 4.5 KS RHOMBOS system is also optionally available with cooling meanders as a cooling ceiling.
- Optionally foldable
- Flexible design options
- Easy disassembly without the need for tools

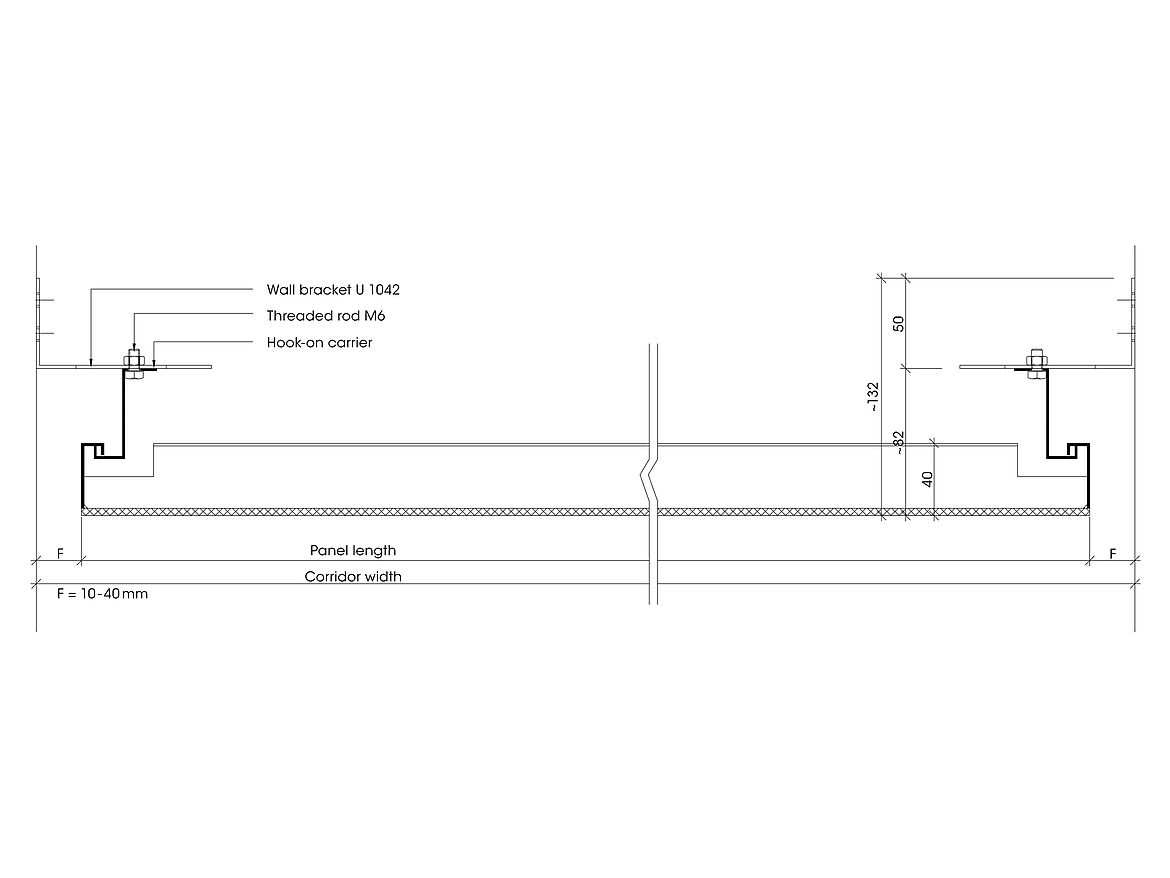

FS4.2 RHOMBOS and FS4.5 KS RHOMBOS
Dimensions
Length: ≤ 3000 mm
Width: ≤ 1100 mm
Recommended surface area: ≤ 2.5 m²
Material and surface
Galvanised steel, aluminium on request: silver metallic (similar to RAL 9006), white (RAL 9016 matt DUROPLAN Type 1), brilliant chrome with clear lacquer. Other powder coatings are possible.
Acoustics and mesh
As standard, sound absorption with black acoustic fleece (αw= 0,45; NRC= 0,40)
Standard mesh sizes: M110, M260, M400. Other mesh sizes are possible.
Fire behaviour
Standard, smooth or perforated: A2-s1.dO in acc. with EN13501-01 (non-combustible)

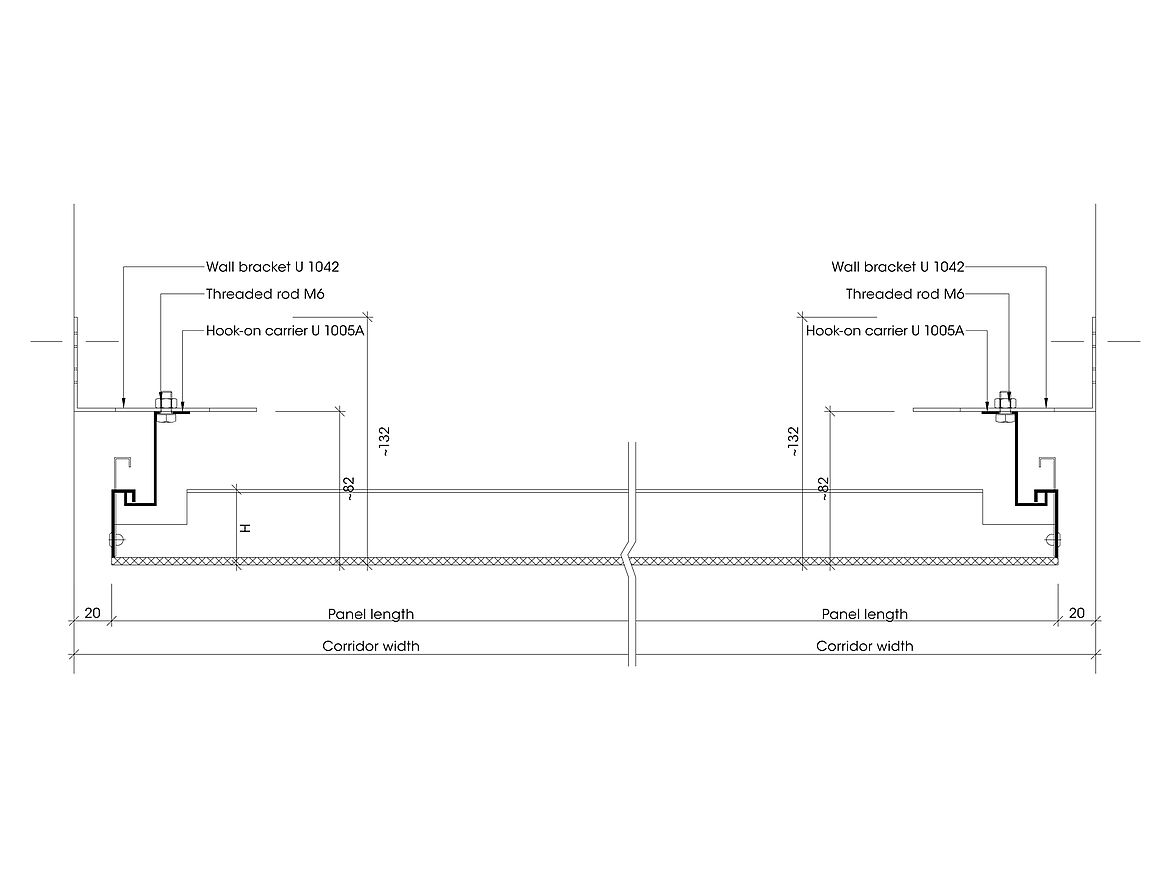

FS4.5 KS RHOMBOS
Dimensions
Length: ≤ 2500 mm
Width: ≤ 1100 mm
Recommended surface area: ≤ 2.0 m²
Material and surface
Galvanised steel, aluminium on request: silver metallic (similar to RAL 9006), white (RAL 9016 matt DUROPLAN Type 1), brilliant chrome with clear lacquer. Other powder coatings are possible.
Acoustics and mesh
As standard, sound absorption with black acoustic fleece (αw= 0,45; NRC= 0,40)
Standard mesh sizes: M110, M260, M400. Other mesh sizes are possible.
Fire behaviour
Standard, smooth or perforated: A2-s1.dO in acc. with EN13501-01 (non-combustible)
