STAR LINEAR LOUVRE

Open metal ceiling with clearly defined edges

The open STAR linear louvre defines accents in any architectural context. This open-cell ceiling can be installed horizontally or vertically. The combination of blades and clearly defined edges creates a unique appearance. If the main blades are painted in different colours, completely new ceiling designs are generated in combination with the recessed black secondary blades.

  • Aesthetic integration of spot-shaped luminaires is possible
  • Individual panels are pre-fabricated
  • As an option, panels can be foldable (hinged).

Technical Information

Dimensions

Panels: 1200 x 600 mm
1250 x 625 mm | max. 1320 mm (only STAR 3)

Blade dimensions

STAR 3:
Width x Height: 3 x 20 mm
Blade pitch: 15 - 40mm

STAR 9:
Width x Height: 9 x 17.3 mm
Blade pitch: ≥ 20mm

STAR 15:
Width x Height: 15 x 14.3 mm
Blade pitch: ≥ 25mm

Traverse dimensions

Width x Height: 9 x 22mm
Blade pitch: 375mm

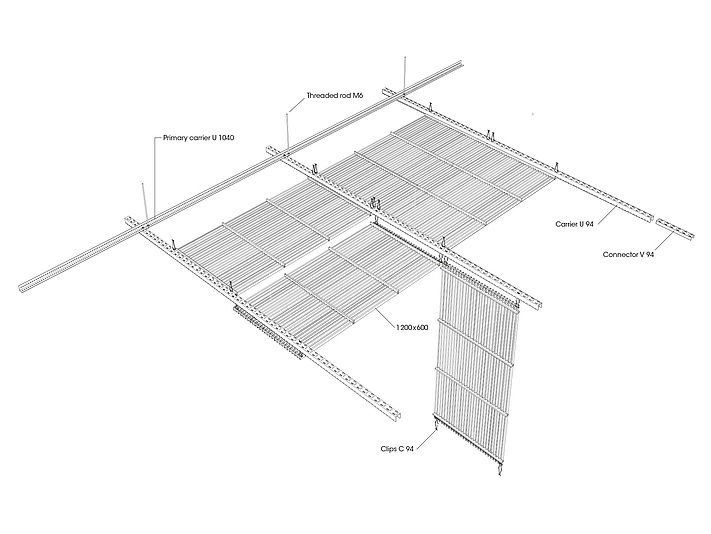

Traverse

Horizontal: U 94
Vertical: U 94, direct wall mounting, U-profile

Material and surface

Aluminium. Surface strip-painted
Louvers: white, black, RAL 9006; other colours on request
Traverses: black (white also possible with STAR  9 and STAR  15)

Acoustics

Noise absorption: in conjunction with broad-band absorber dur-SONIC® TUBE (αw=  0,80; NRC=  0,75)
