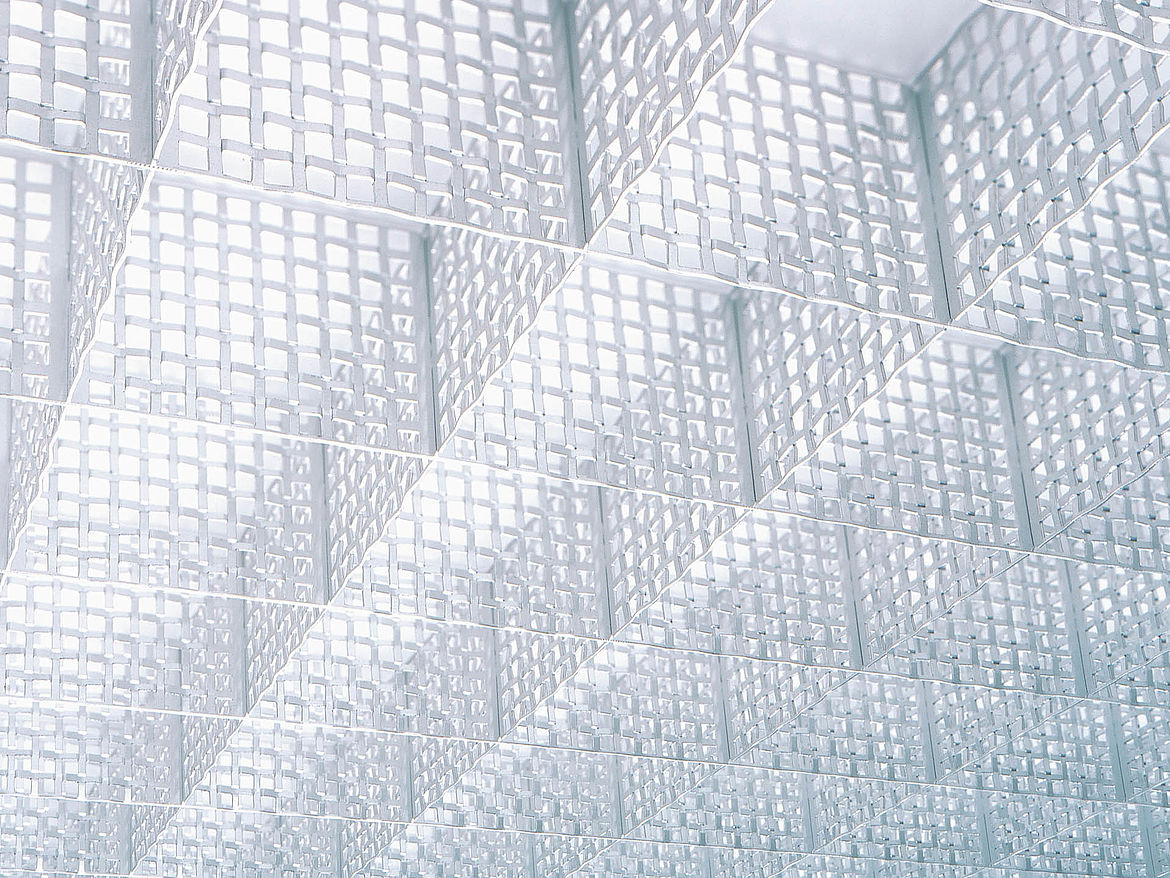

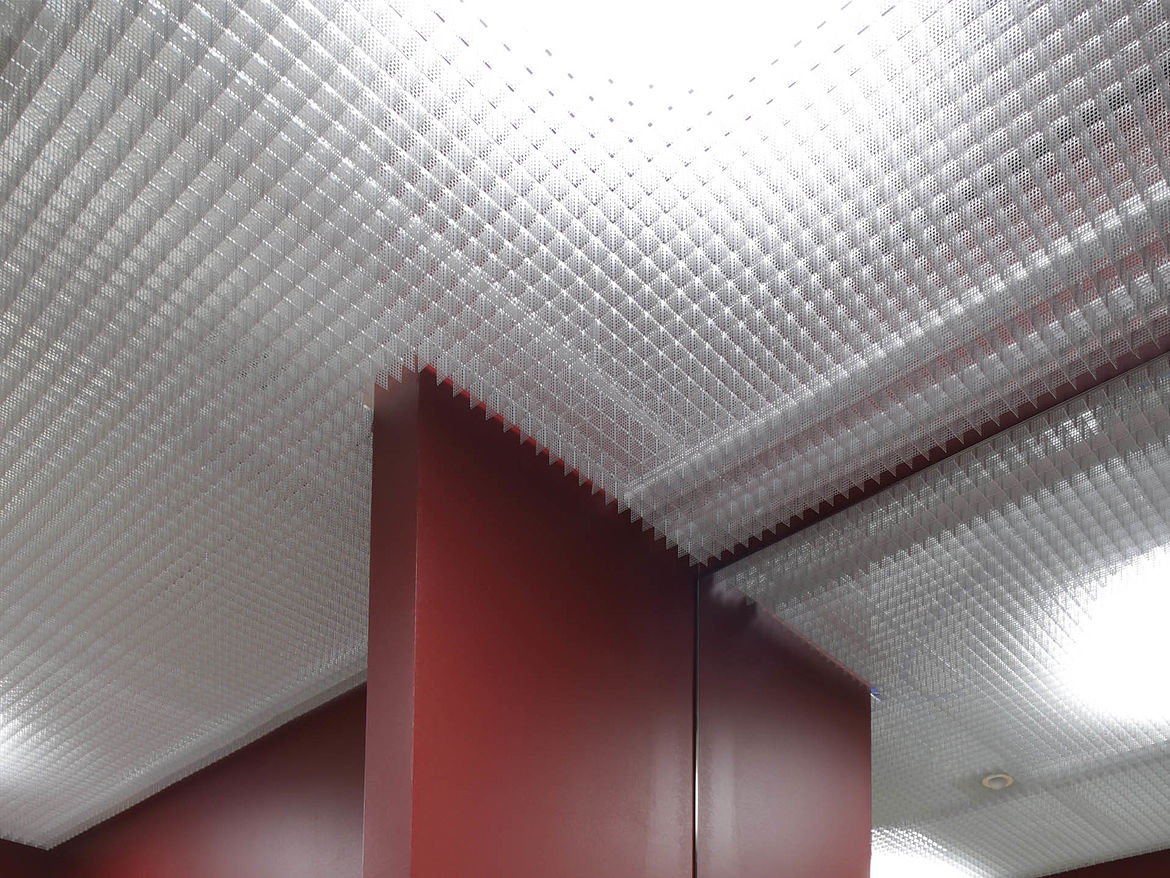

The 'braided' metal TICELL open-cell ceiling is a single blade louvre structure which imbues every project with an individual design characterised by metallic modern lightness. Thanks to a special process, the surfaces of the aluminium blades are structured in such a way that their punched edges reflect the flow of light, thus providing a unique look.

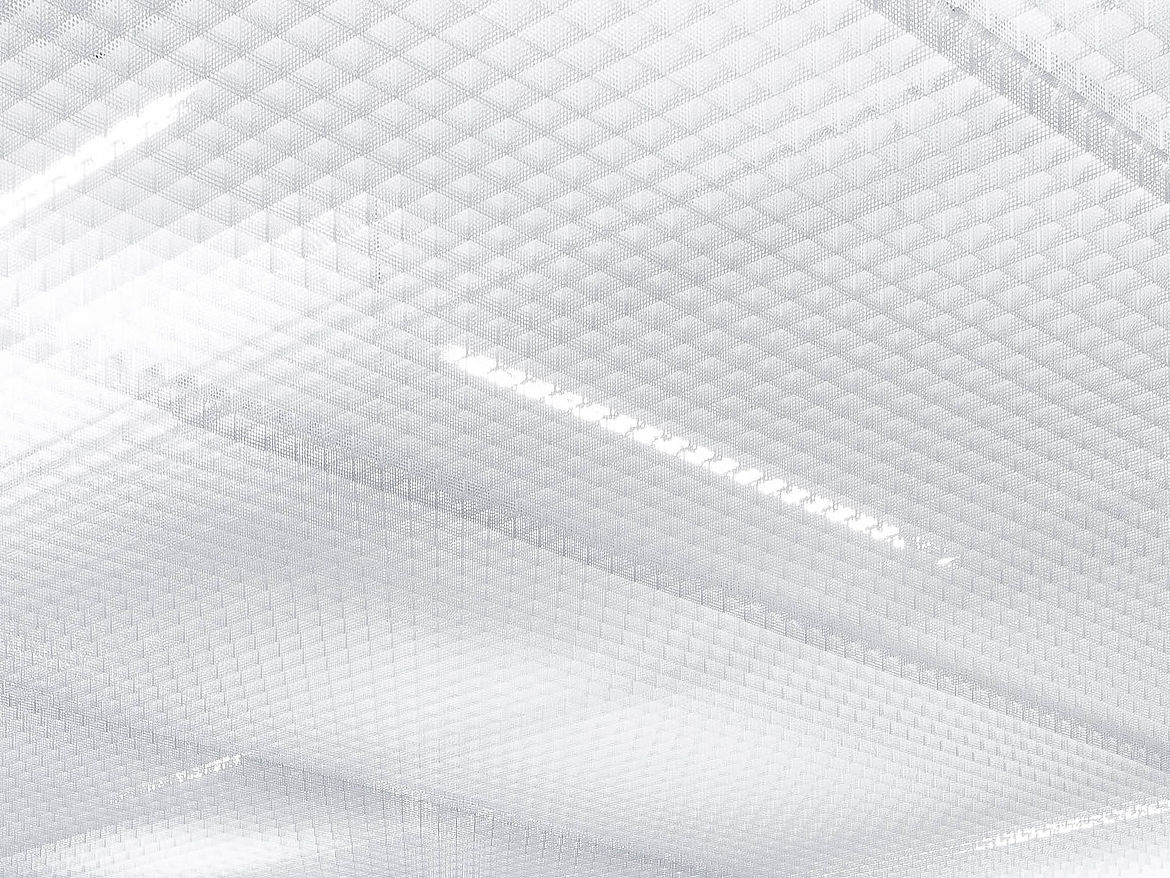

- The LED downlights can be integrated aesthetically in the ceiling.
- The ratio between cell dimension and cell height allows TICELL to provide optimum light permeability.
TICELL SINGLE BLADE LOUVRE

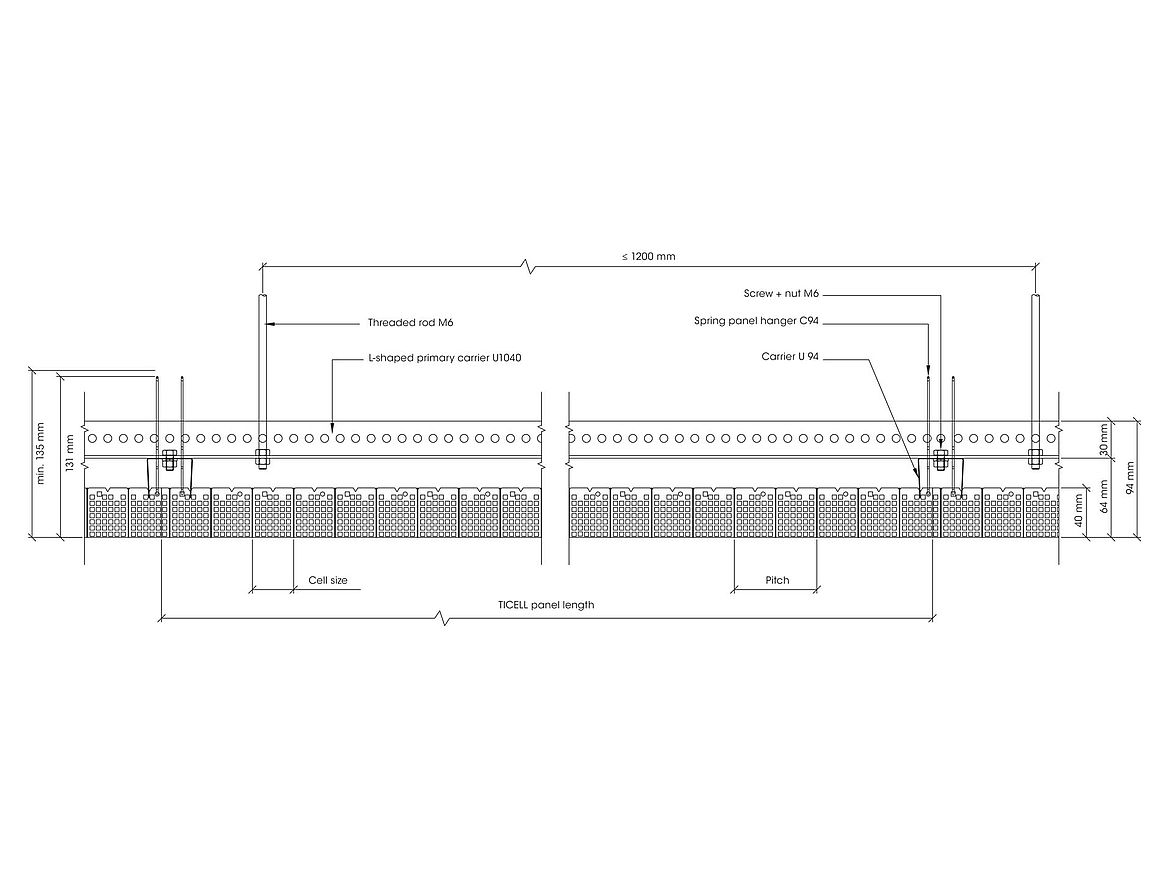

Dimensions
Panels:
1200 x 600mm
Cell dimension: 33.33 x 33.33mm | 54.55 x 54.55mm (only material thickness 0.6 mm)
Height: 40mm
Traverse:
U94 | T15/T24 carrier rail
Material and surface
Aluminium 0.6 mm / 0.95 mm. Surface strip-painted
Louvers: white, other colours on request.
Acoustics
Noise absorption: in conjunction with broad-band absorber dur-SONIC TUBE(αw= 0,80; NRC= 0,75)
