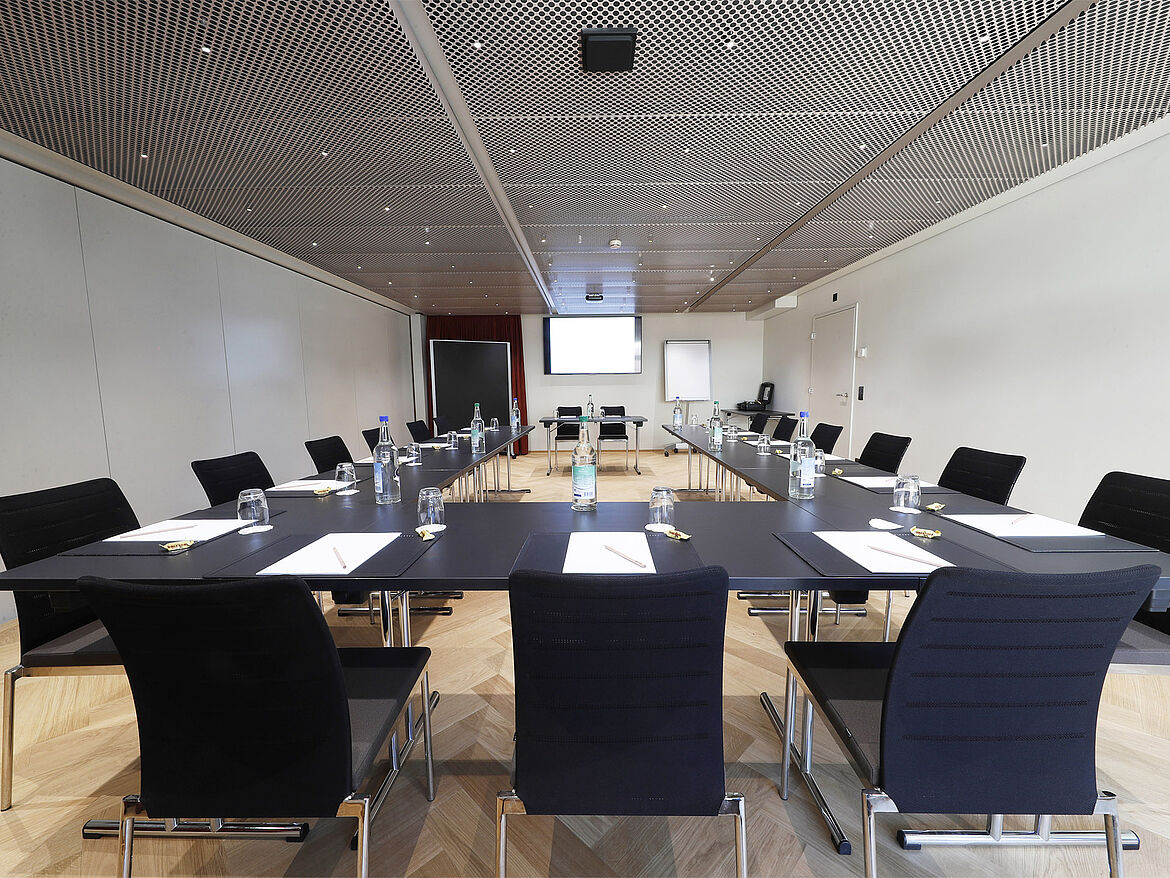

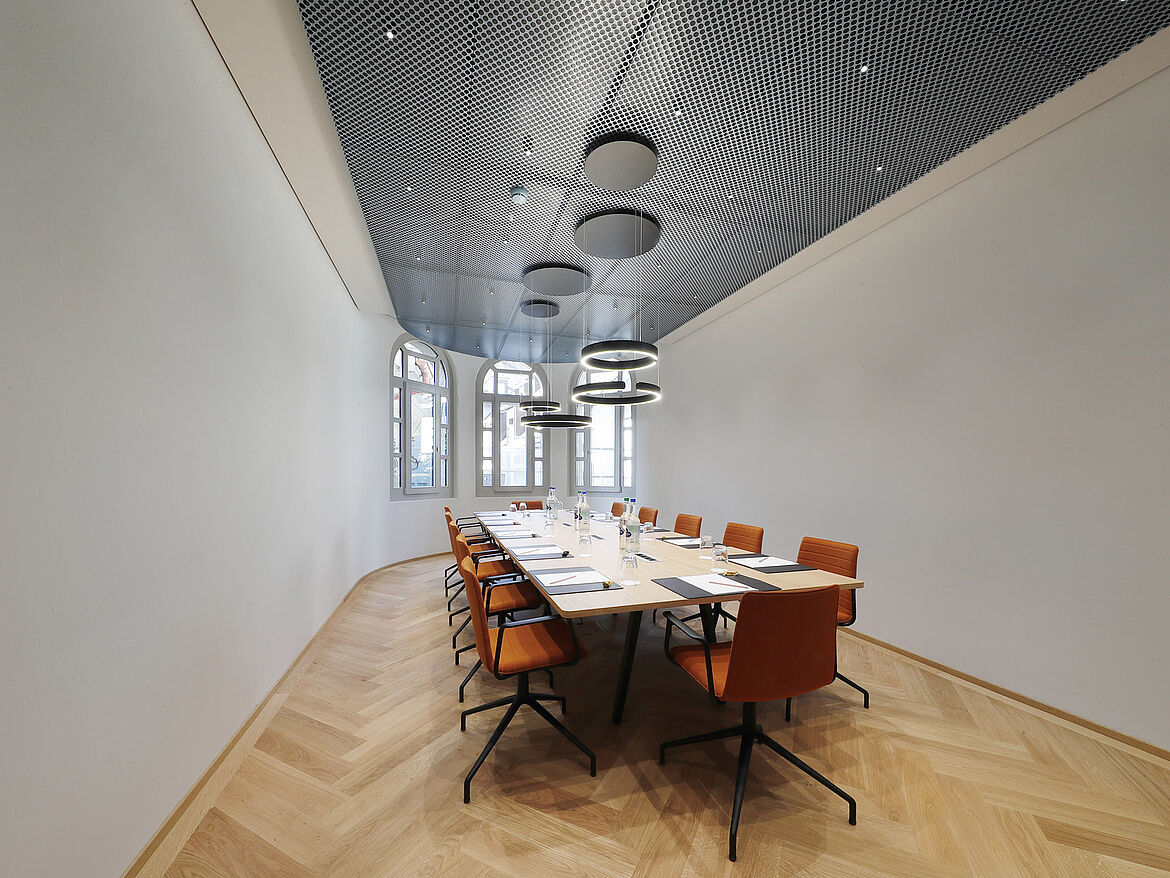

PUNTEO-N 1x1 spots in perforated metal ceiling | Seminar rooms Hotel Bern [CH]
PUNTEO-N 1x1 spots in perforated metal ceiling | Seminar rooms Hotel Bern [CH]

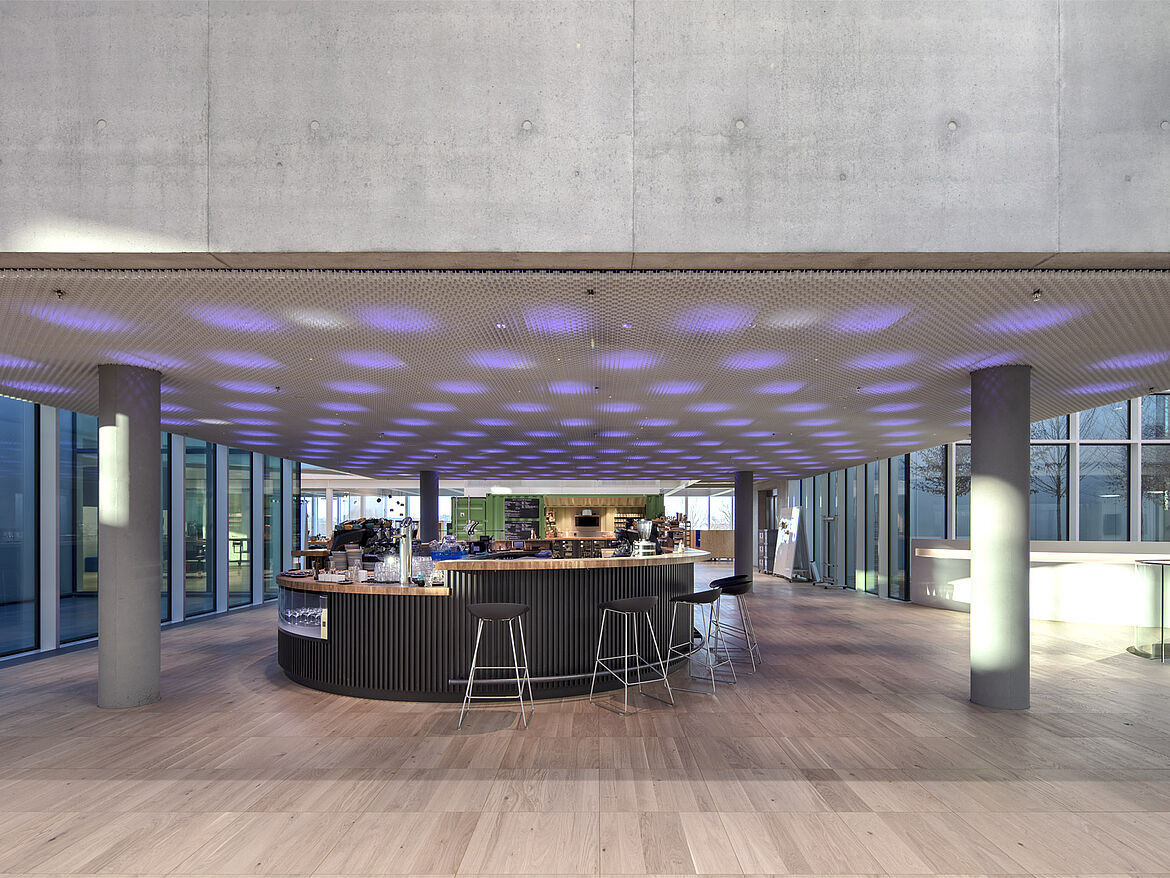

PUNTEO-N 1x2 in TICELL-N open-cell ceiling | Innovation Center Bühler Uzwil [CH]

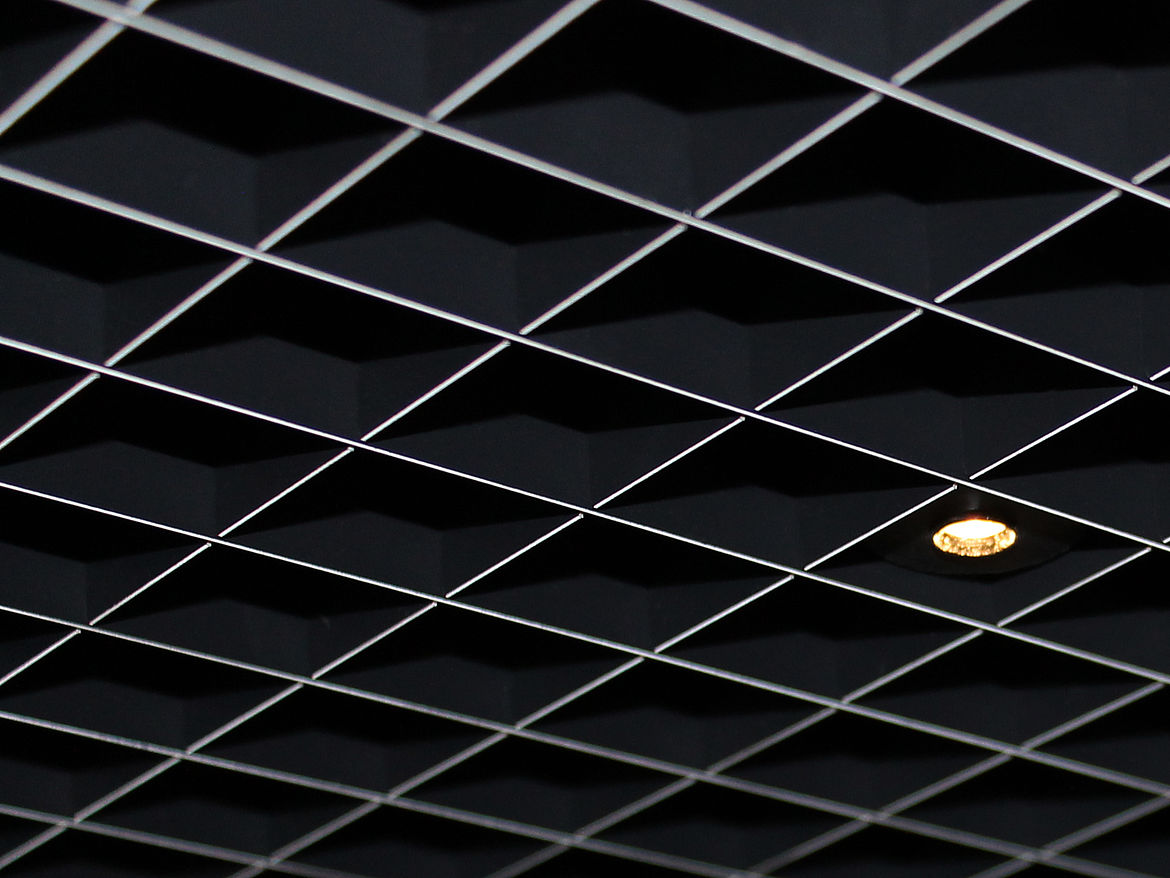

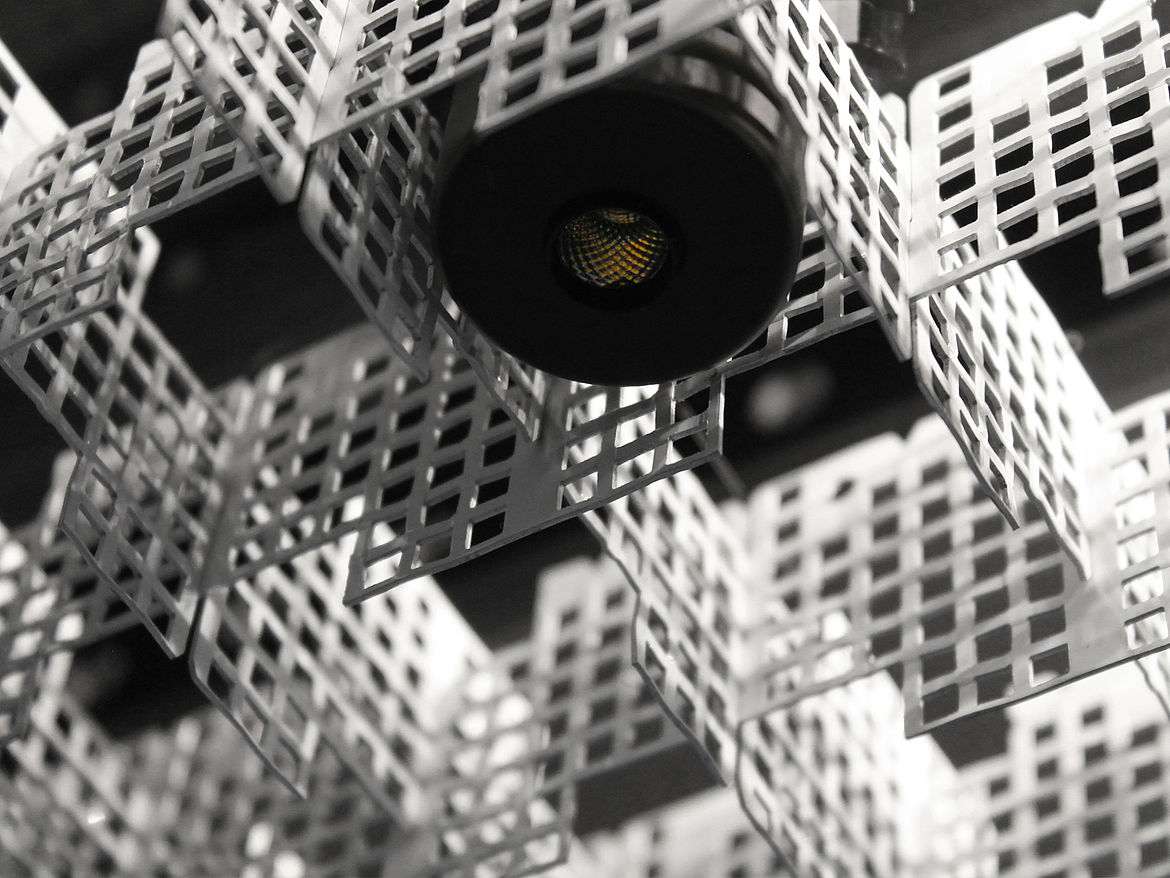

PUNTEO-N 1x1 LED recessed luminaire in open cell ceiling

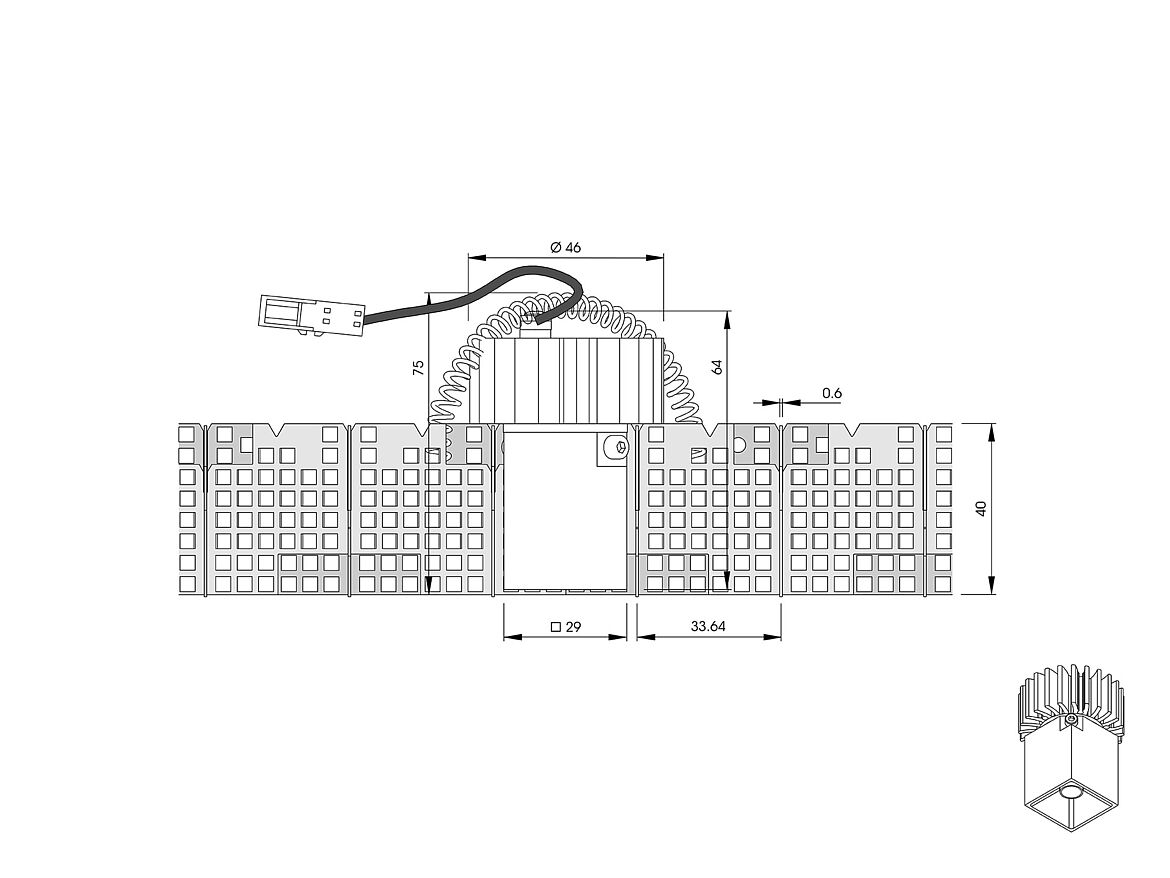

PUNTEO-N 1x1 LED recessed luminaire in open cell ceiling TICELL-N

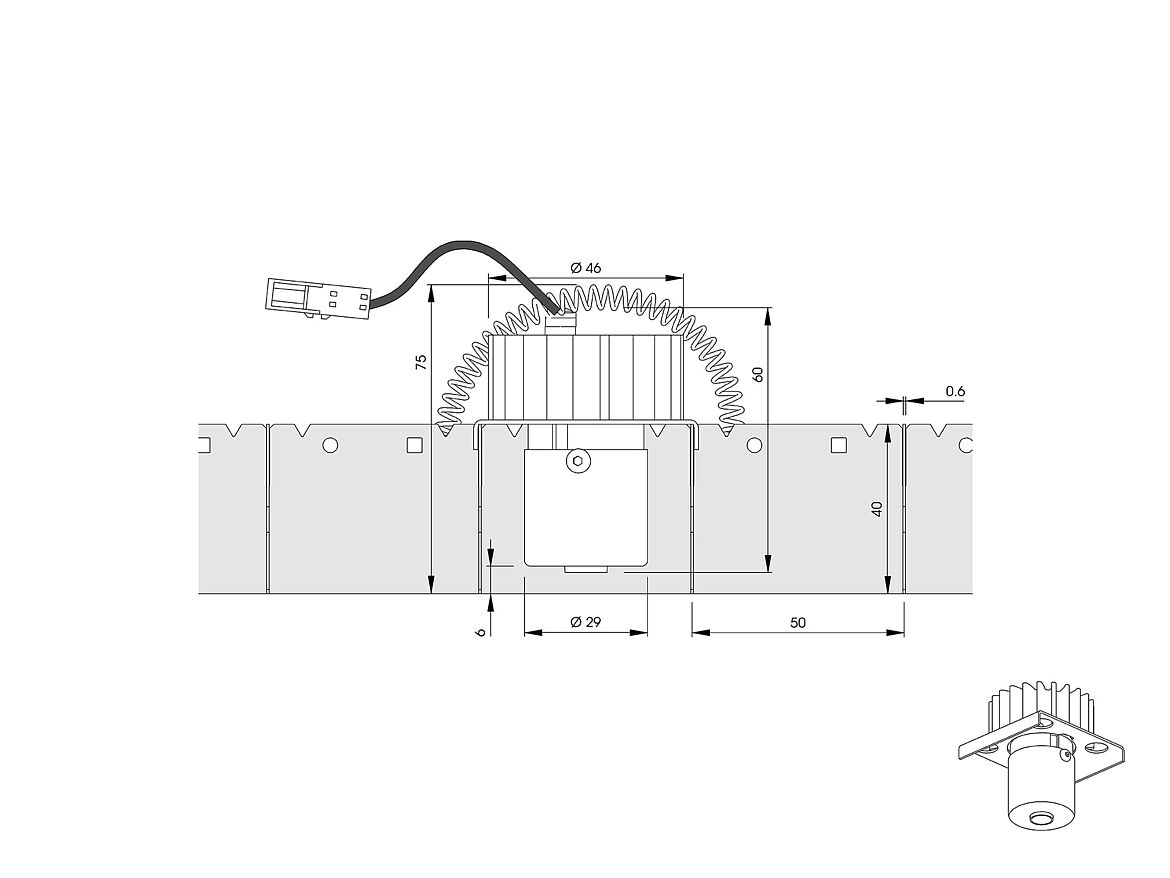

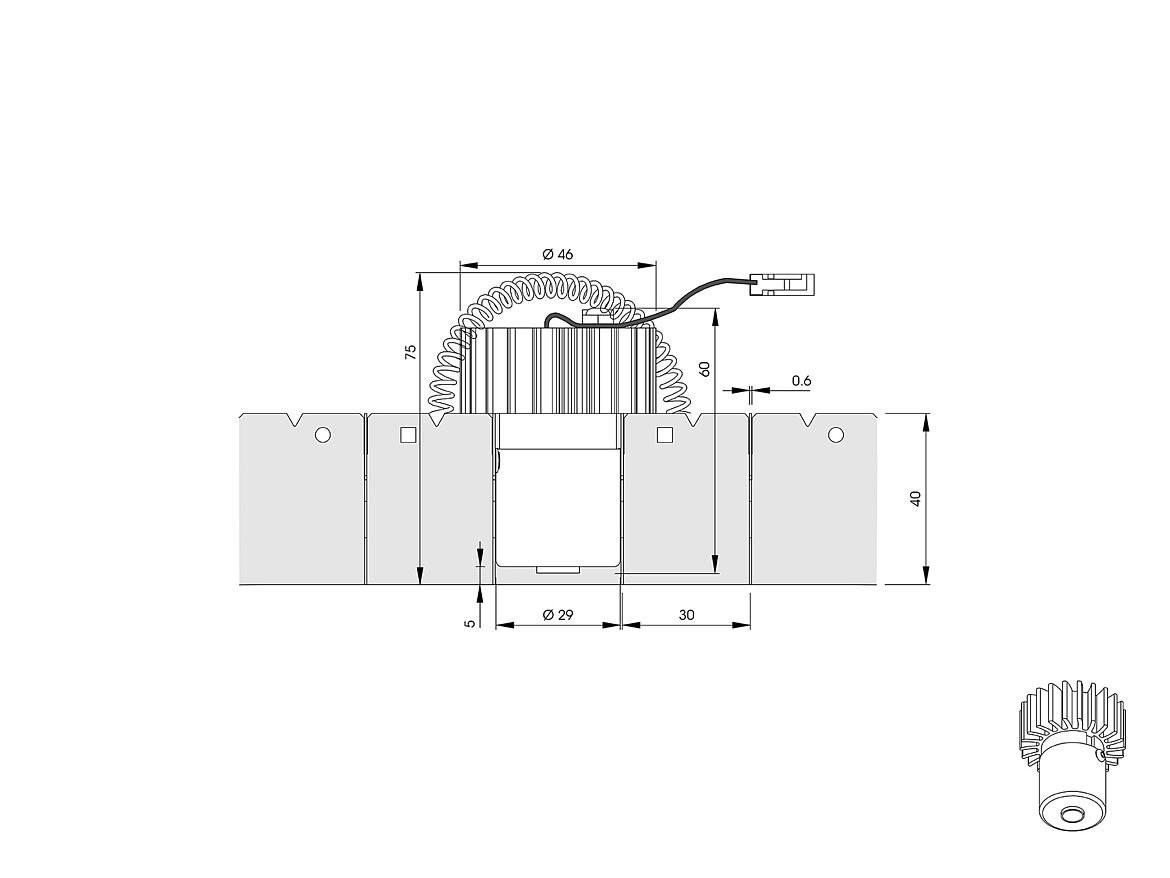

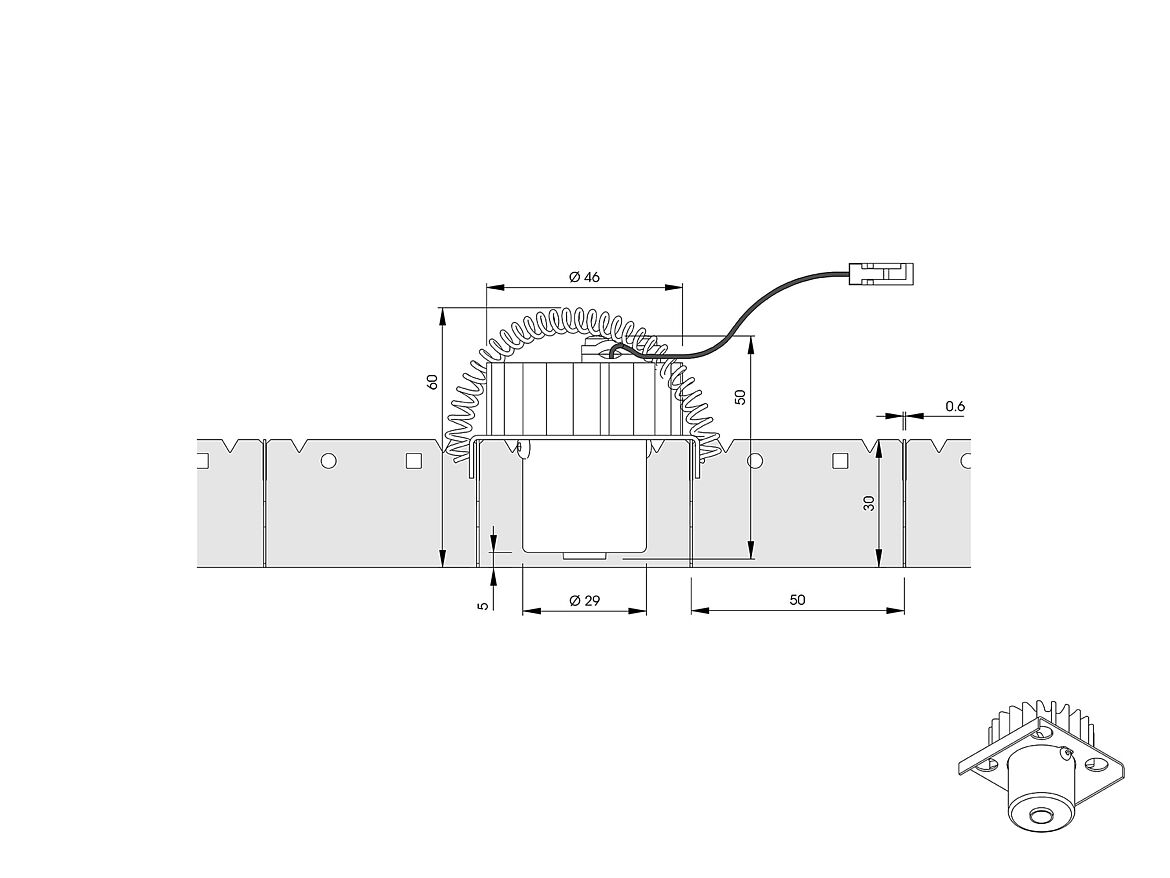

PUNTEO-N 1x1 LED recessed luminaire in open cell ceiling QUADRA
PUNTEO-N 1x1 is a highly efficient LED recessed luminaire that impresses with its high energy savings and excellent glare control at maximum light exit. The downlight can be integrated optimally into cells of open ceilings, making the luminaire body almost invisible. If the recessed luminaire is installed behind the ceiling system, this creates a two-dimensional lighting effect known as the 'corona effect', ideally suited for the accentuation of chosen areas and for orientation in large interior spaces, all achieved through configuration and choice of lighting colour. The downlight is just as suitable for integration into closed ceilings.
- Various lighting technologies are available.
- Highly efficient lighting system
- Versions for open and closed ceilings available

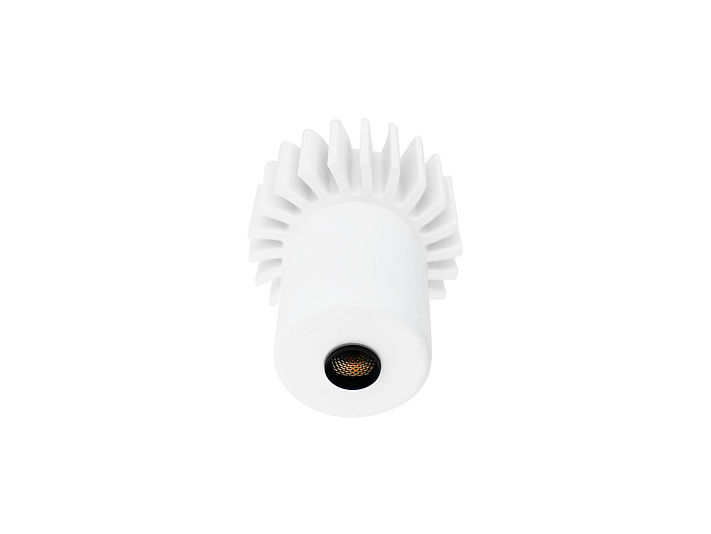

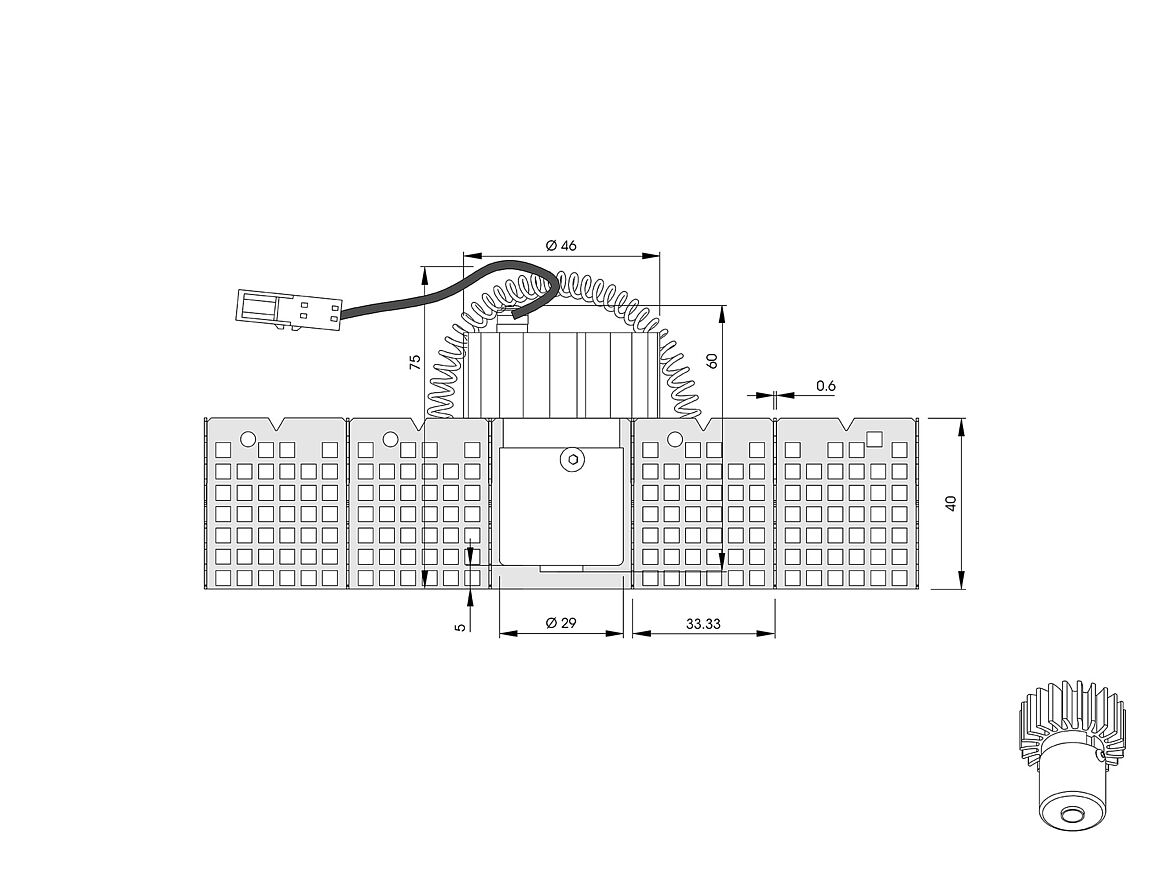

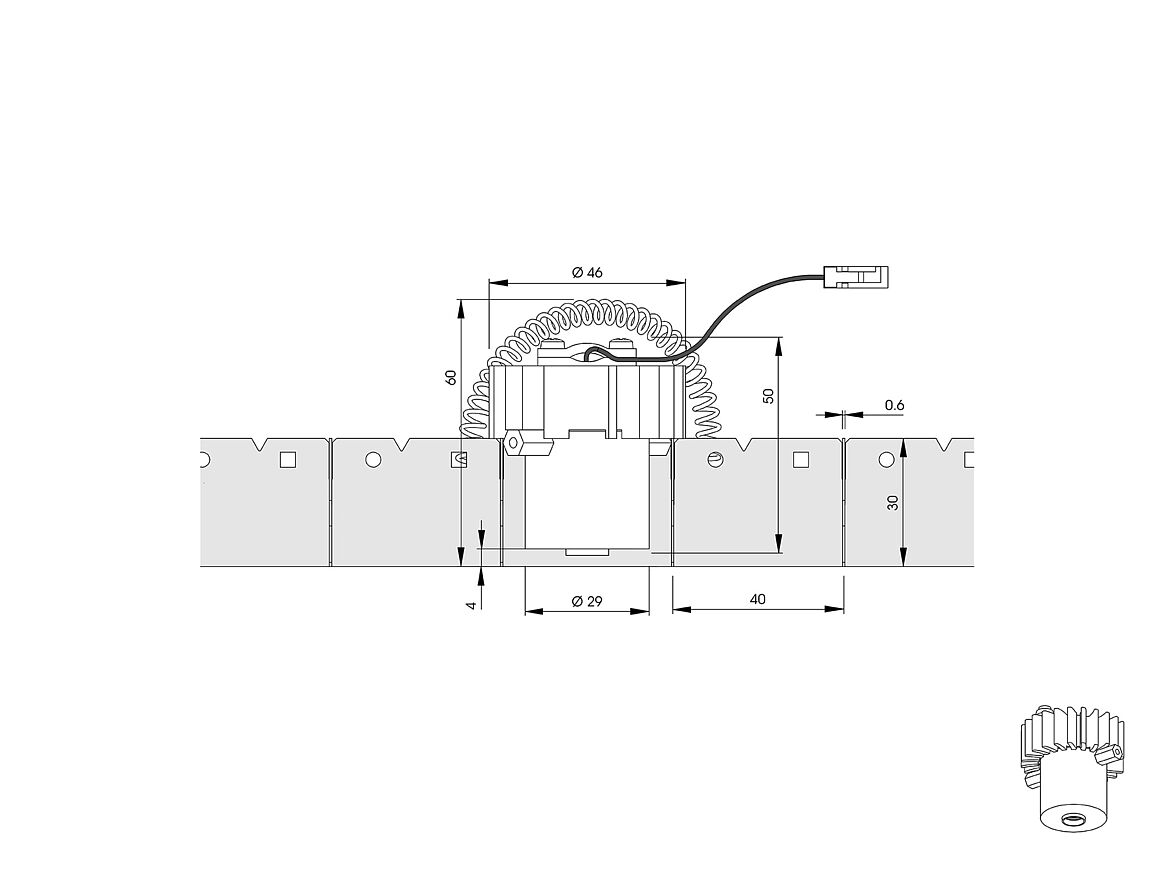

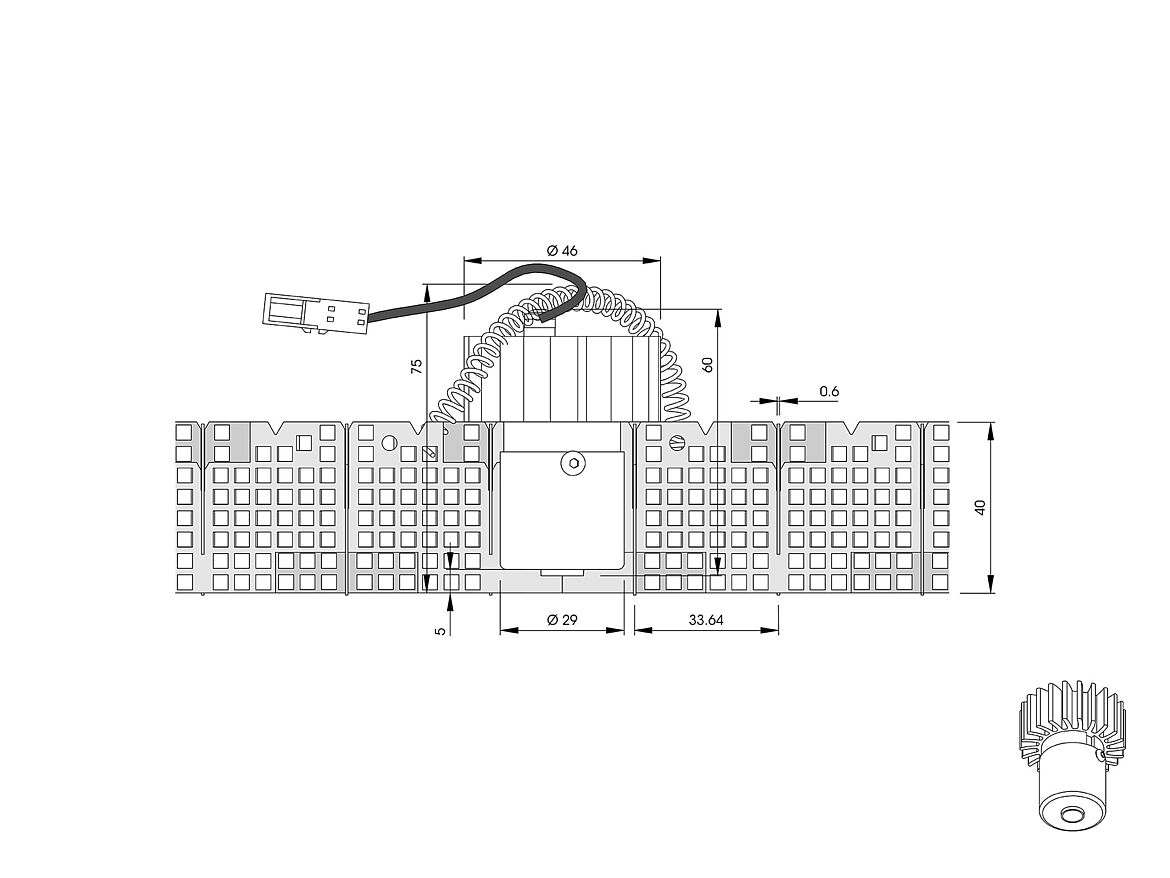

PUNTEO-N 1x1 FOR OPEN CEILINGS (SYSTEM 01 and SYSTEM 02)
Dimensions
Ø 30
System 01: Height min. 54 mm
System 02: Height min. 64 mm
Material and surface
Housing: Aluminium black anodized or painted white
Luminaire details
Lighting colour: 2700 – 5000 K, tunable white (2700 – 5000 K) or single colour, CRI > 80
LED output: 780 lm (3000 K) / 880 lm (4000 K) / 809 lm (2700/5000 K)
Optical efficiency: 75% (2 x 38°) | 70% (2 x 20°)
Light distribution: 2x38°, 2x20°
Dimmability: DALI dimmable
Driver: external in ceiling cavity
Power supply: DC driver 350 – 700 mA CC | 12 V
IP 20
Protection class III (excl. LED driver)

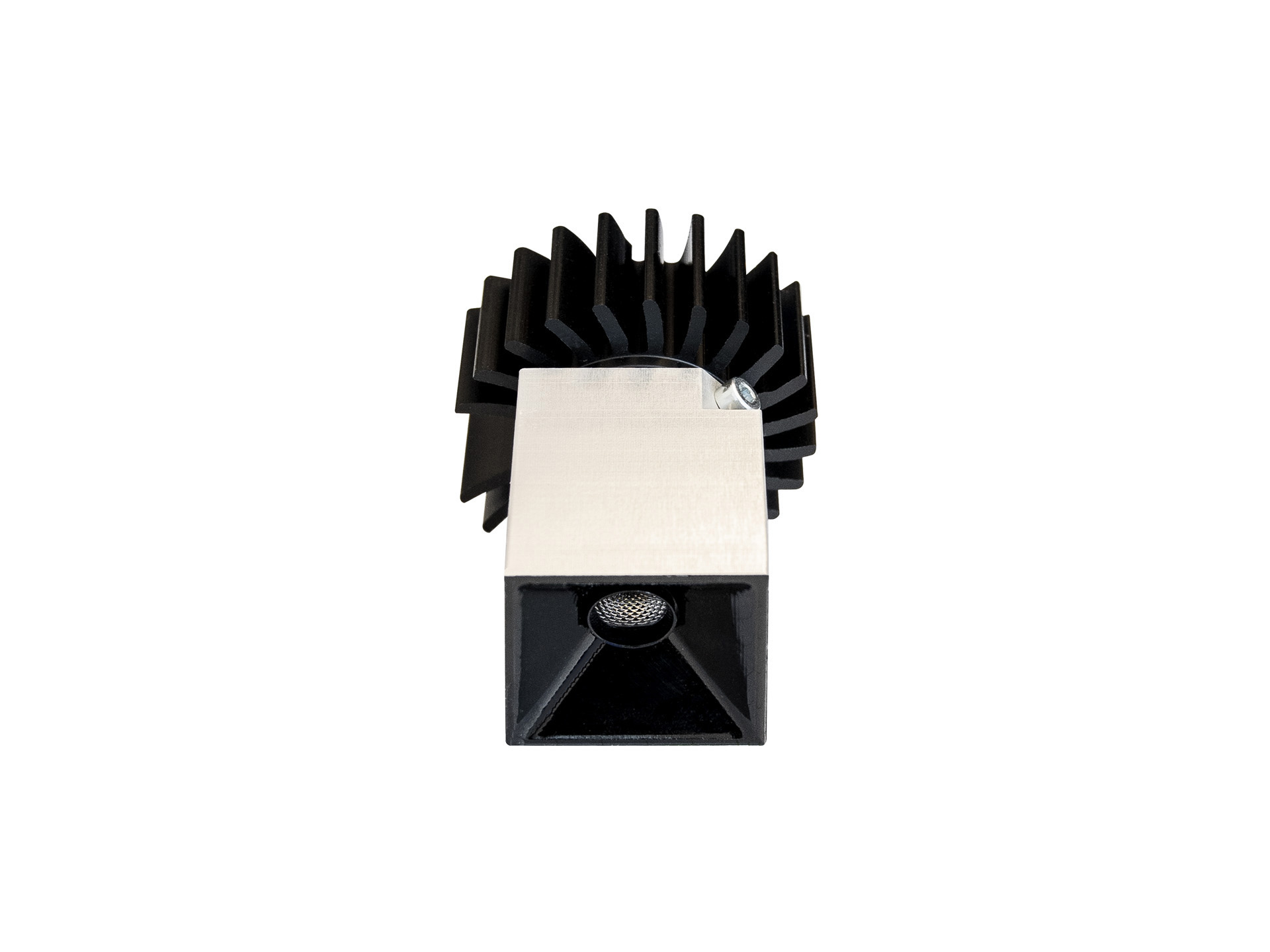

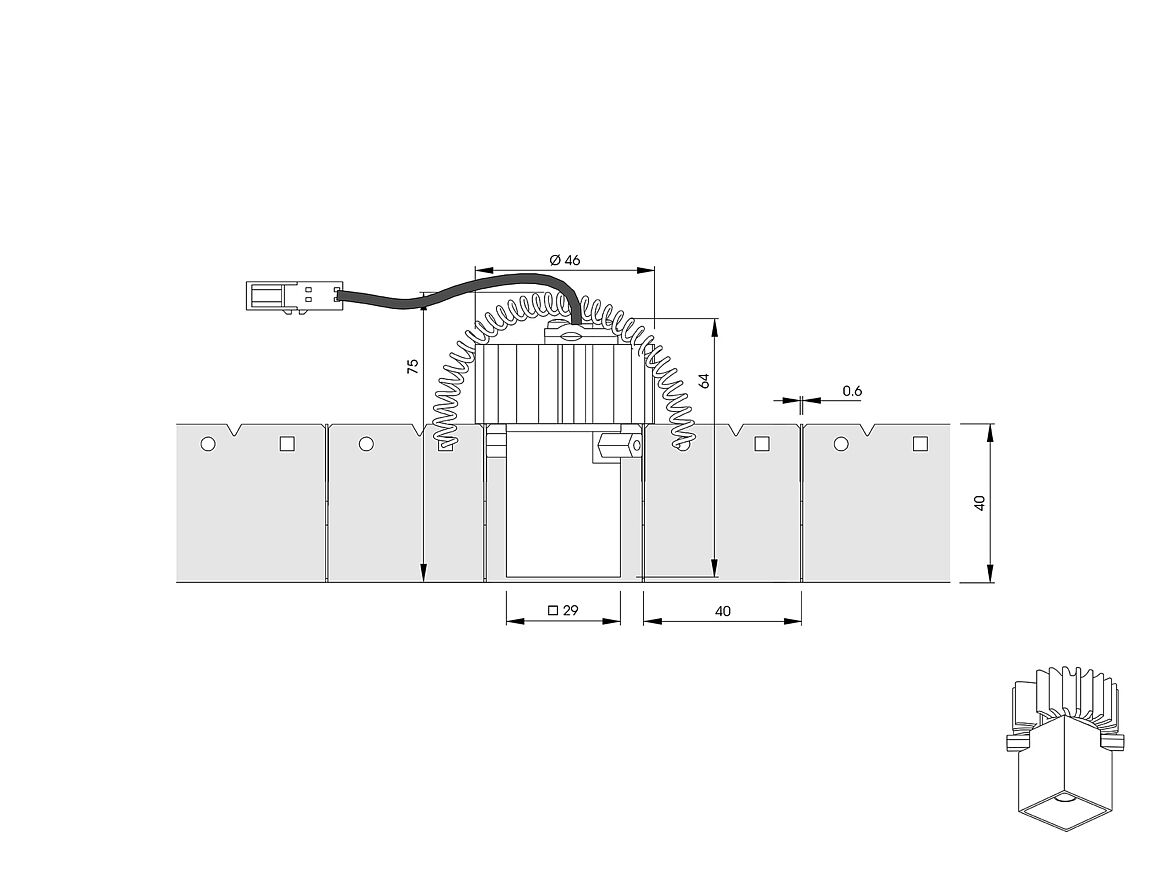

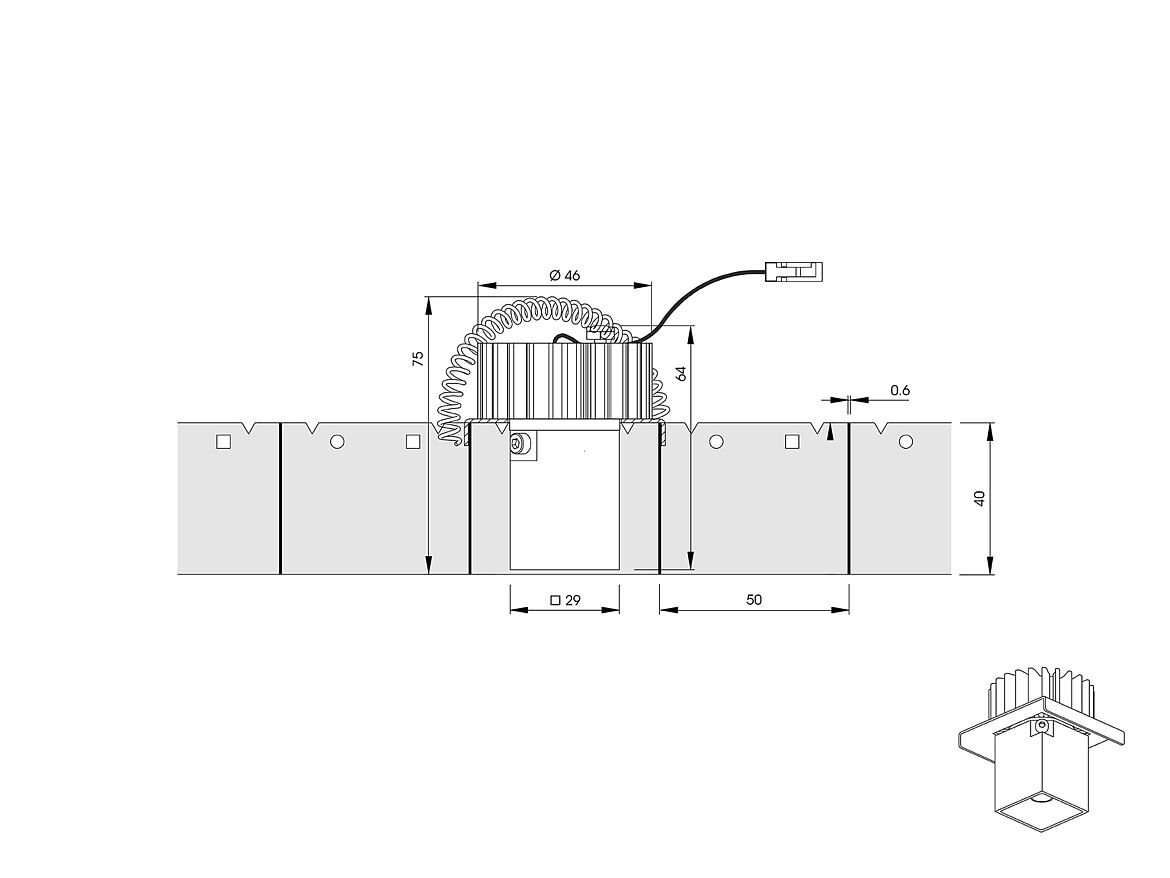

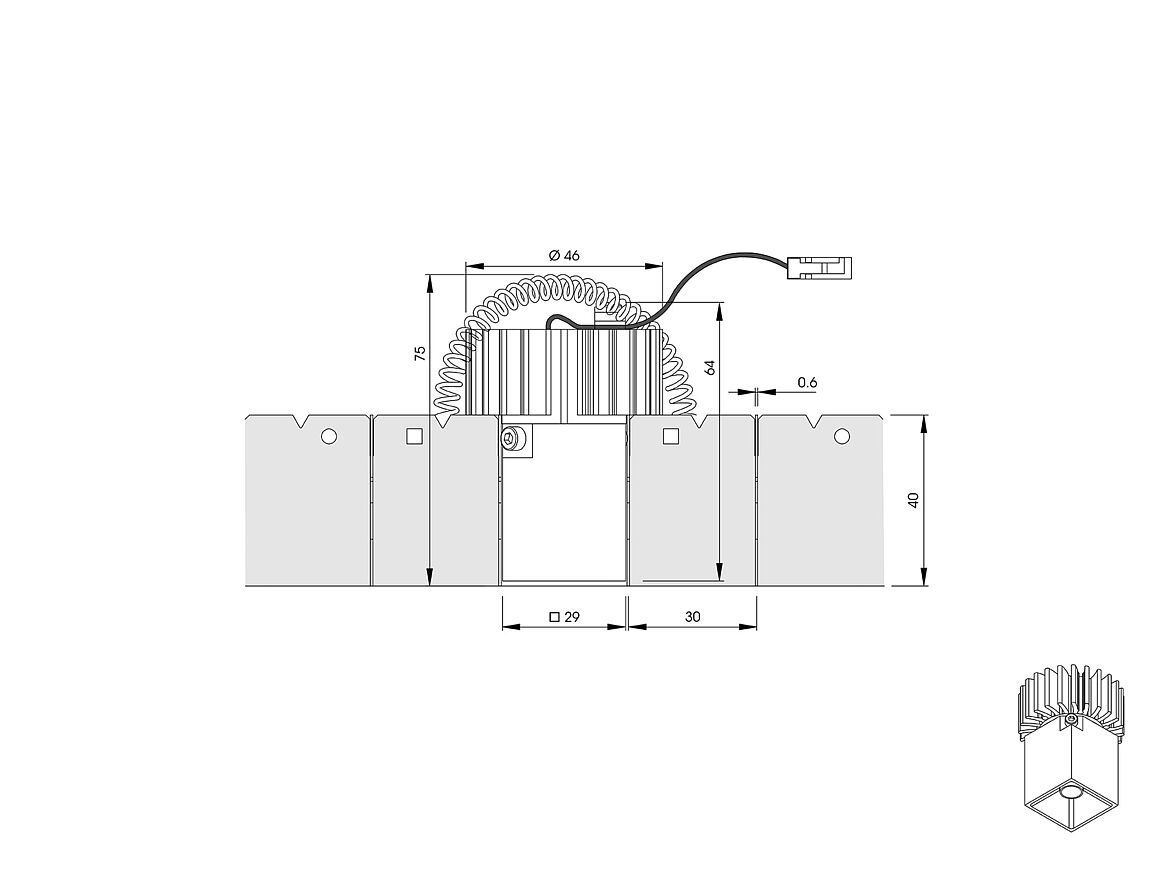

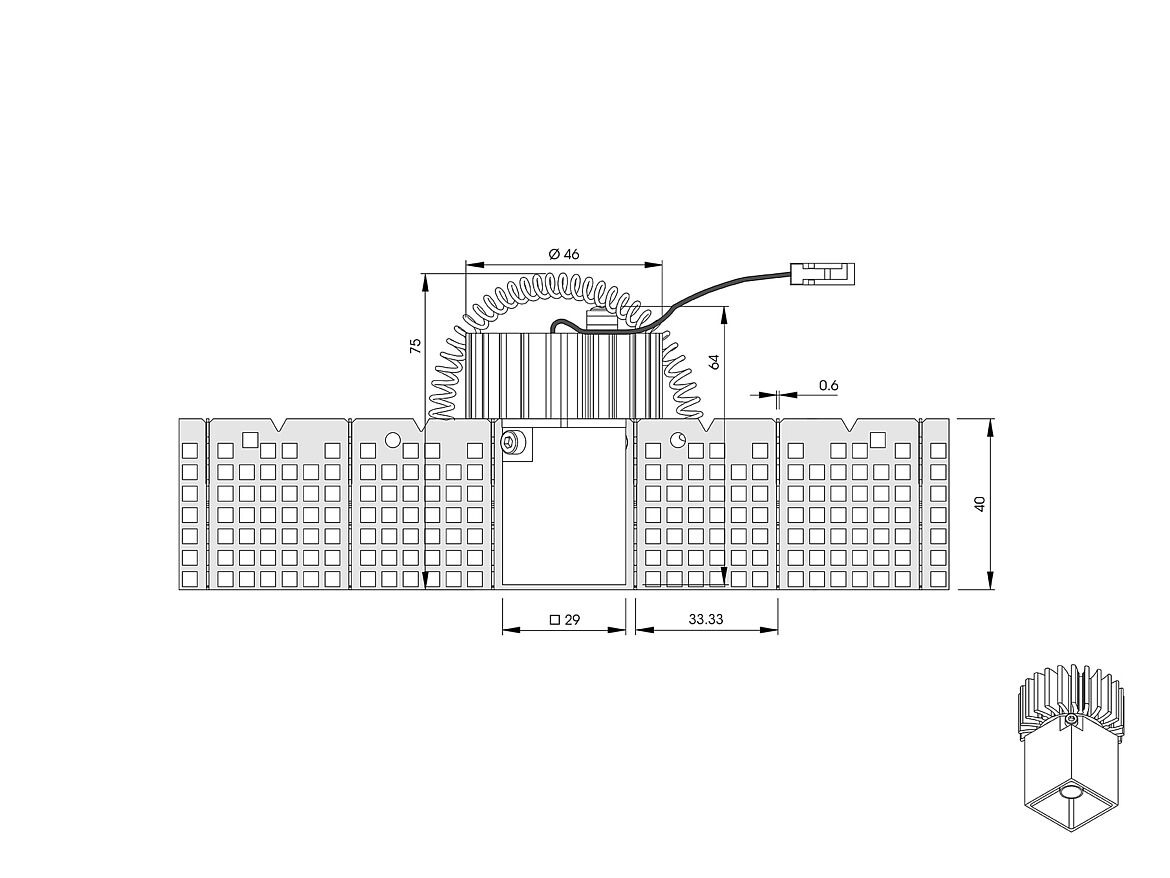

PUNTEO-N 1x1 FOR OPEN CEILINGS (SYSTEM 07)
Dimensions
Length x width: 29 x 29 mm
Height: min. 69 mm
Material and surface
Housing: Aluminium black anodized or painted white
Luminaire details
Lighting colour: 2700 – 5000 K, tunable white (2700 – 5000 K) or single colour, CRI > 80
LED output: 850 lm (3000 K) / 905 lm (4000 K) / 900 lm (2700/5000 K)
Optical efficiency: 75% (2 x 38°) | 70% (2 x 20°)
Light distribution: 2x38°, 2x20°
Dimmability: DALI dimmable
Driver: external in ceiling cavity
Power supply: DC driver 350 – 700 mA CC | 12 V
Protection system: IP 20
Protection class: II (excl. LED driver)

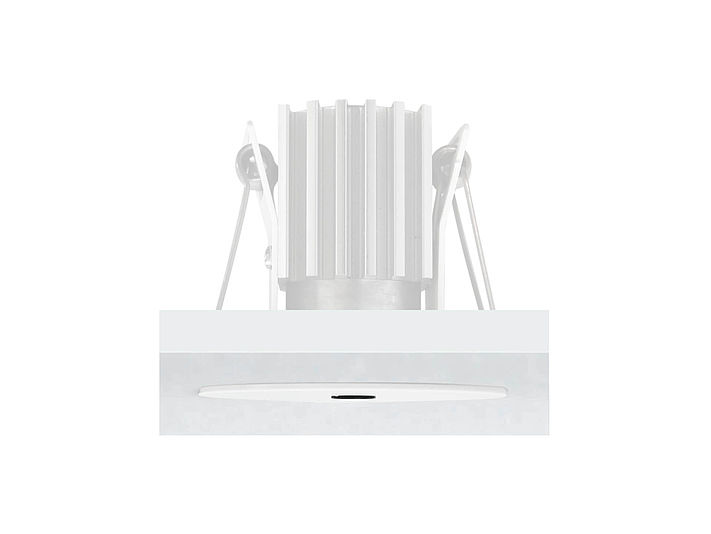

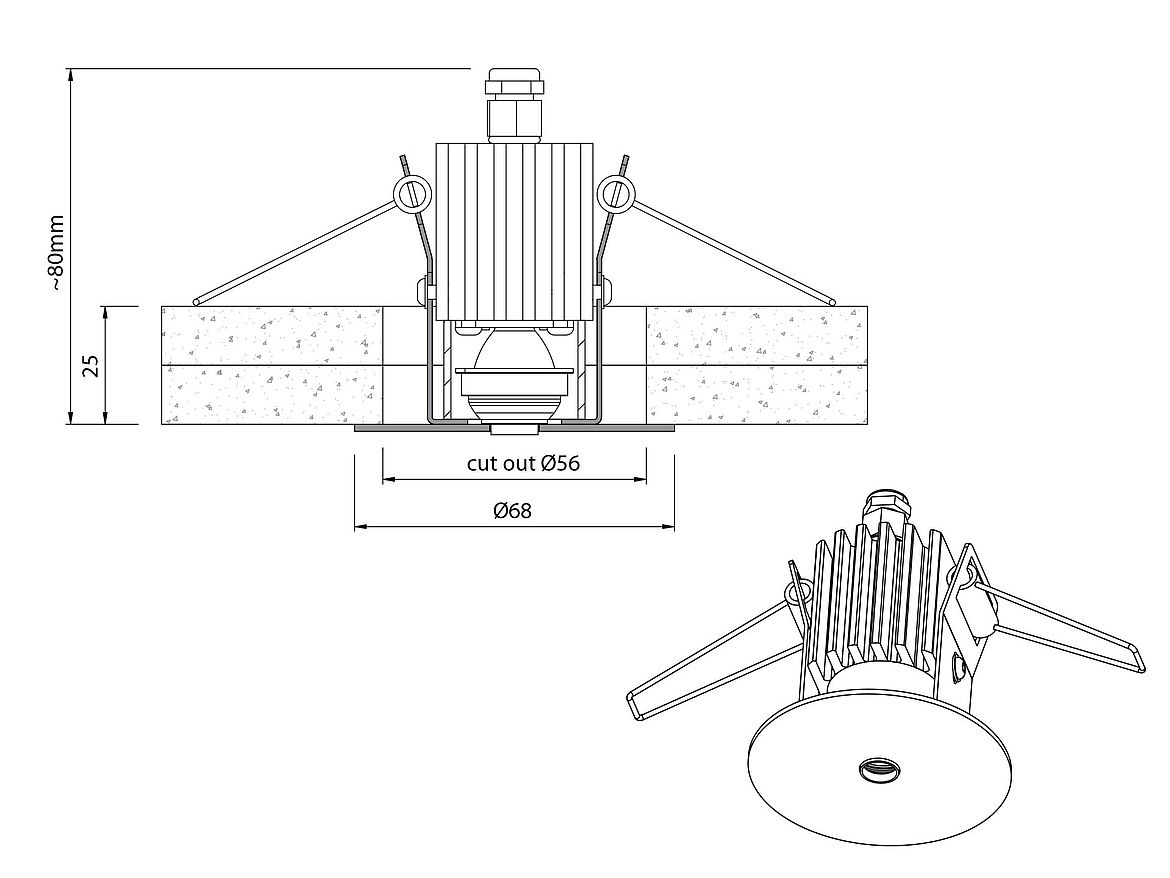

PUNTEO-N 1x1 FOR CLOSED CEILINGS (SYSTEM 03)
Dimensions
Ø 68 | ceiling cutout Ø : 56 mm
Height min 80 mm
Material and surface
Housing: Powder-coated aluminium in RAL 9016 or RAL 9006
Luminaire details
Lighting colour: 2700 – 5000 K, tunable white (2700 –5000 K) or single colour, CRI > 80
LED output: 780 lm (3000 K) / 880 lm (4000 K) / 809 lm (2700/5000 K)
Optical efficiency: 75% (2 x 38°) | 70% (2 x 20°)
Light distribution: 2x38°, 2x20°
Dimmability: DALI dimmable
Driver: external in ceiling cavity
Power supply: DC driver 350 – 700 mA CC | 12 V
IP 20
Protection class III (excl. LED driver)
