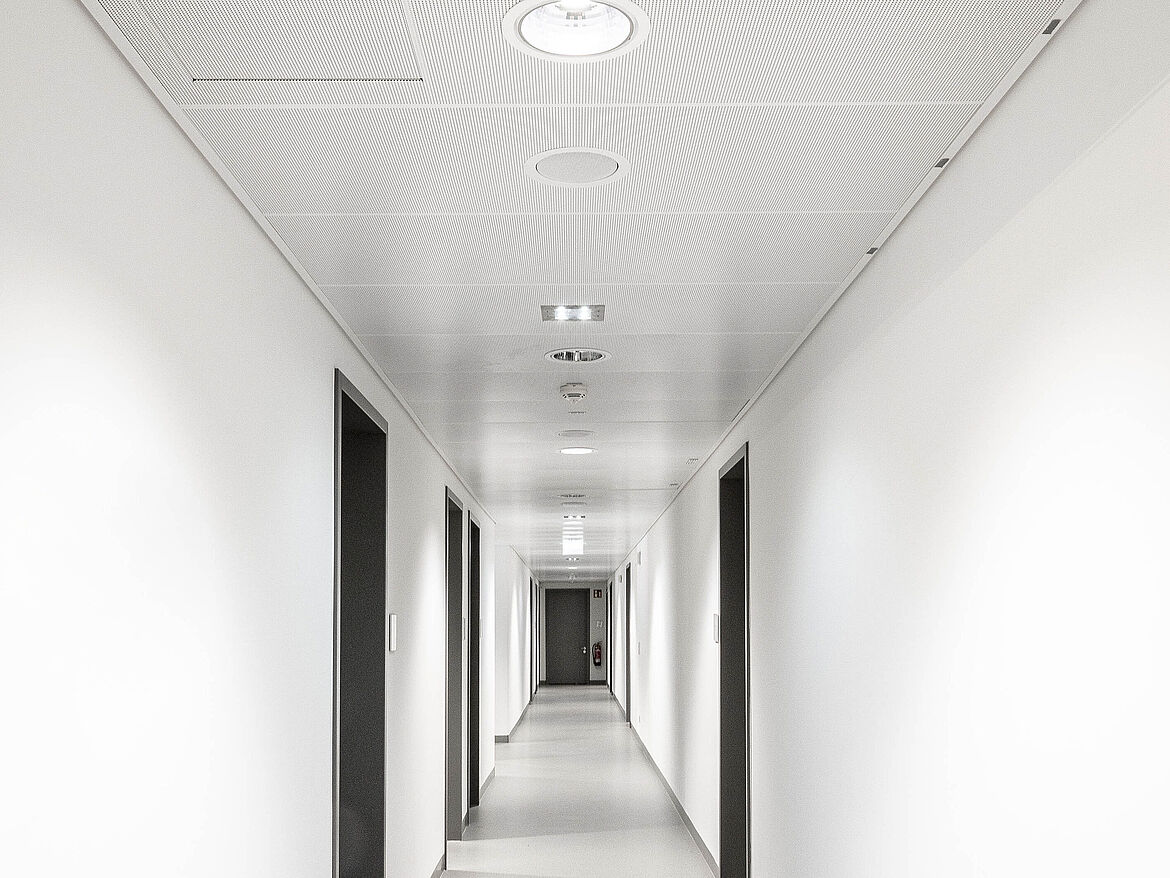

The two metalceiling systems FF025 and FF2025 are specifically suited to vestibules. They are distinguished visually by a slight height offset between panel and visible, F-shaped perimeter trims. Optionally, the vestibule system can be provided with a visible shadow gap (FF2025). The substructure is visible on the insert systems.
- Optionally available with cooling meanders as a cooling ceiling
- Can be dismantled easily

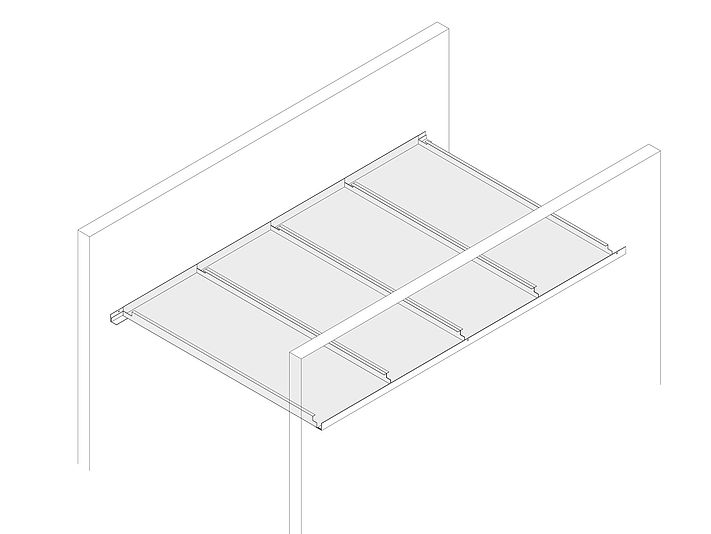

FF025 and FF2025 lay-in systems
Dimensions
Length: ≤ 3500 mm
Width: ≤ 1300 mm
Recommended surface area: ≤ 2.5 m²
Material and surface
Galvanised steel plate, aluminium: standard powder coating, white (RAL 9016 matt DUROPLAN Type 1). Coat thickness: 60 microns Other powder coatings are possible.
Aluminium: coil anodised or mirror polished.
Stainless steel: brushed or mirror polished.
Acoustics and perforation
Standard perforation: RG-L15. Other perforations are possible.
As standard, sound absorption with black acoustic fleece (αw=0,70; NRC=0,70)
Printing
Powder-coated cut sections, also printable with motifs and textures
Fire behaviour
Standard, smooth or perforated: A2-s1.dO to EN13501-01 (non-combustible)
