S7 EXTERIOR rail channel system

S7 EXTERIOR metal ceiling for outdoor use

S7 RHOMBOS EXTERIOR expanded metal ceiling

The S7 EXTERIOR rail channel system can be used in a variety of outdoor applications. Its design makes it particularly suitable for areas exposed to high wind suction and pressure, as well as high corrosion protection requirements.

Easy to disassemble from below
Face-end joint measuring 10 mm

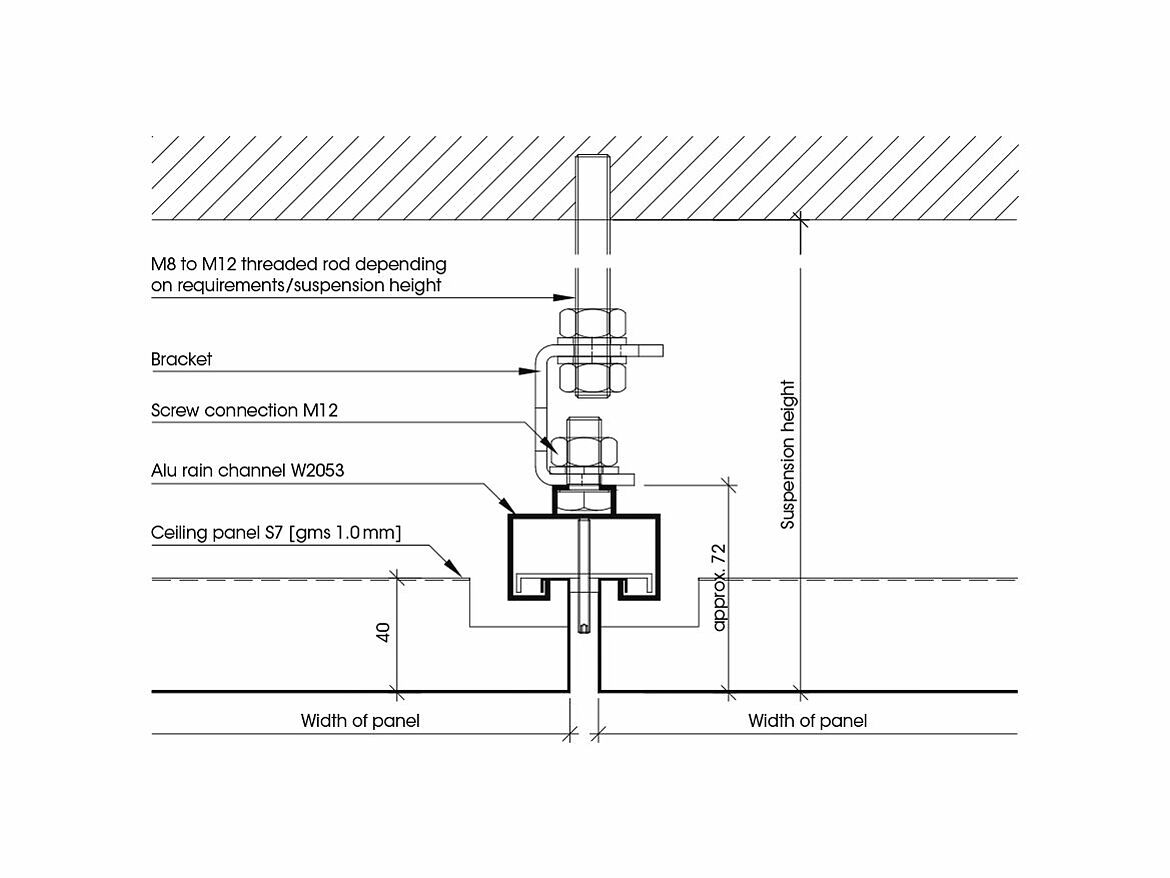

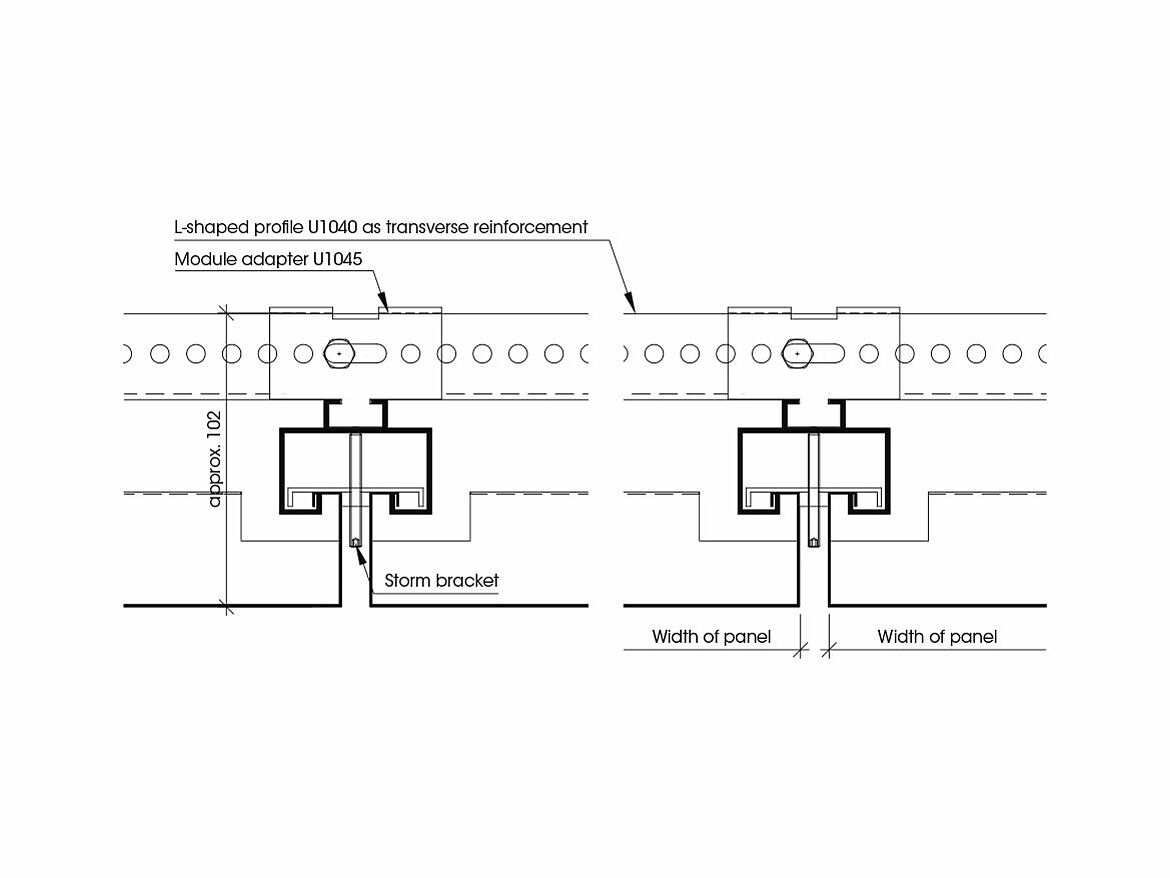

Dimensions

Permissible load 0.5 kN/m² wind suction and wind pressure:

Rectangular:
Maximum panel size: 2250 x 750 mm
Suspension W2053: every 900 mm
Maximum suspension height with M12 threaded rod: 600 mm
Square:
1150 x 1150 mm
Suspension W2053: every 800 mm
Maximum suspension height with M12 threaded rod: 600 mm

Permissible load 1.0 kN/m² wind suction and wind pressure:

Rectangular:
Maximum panel size: 1800 x 600 mm
Suspension W2053: every 800 mm
Maximum suspension height with M12 threaded rod: 500 mm
Square = 950 x 950 mm; suspension W2053 every 600 mm and maximum Suspension height with M12 threaded rod = 500 mm

Permissible load 1.5 kN/m² wind suction and wind pressure:

Rectangular:
Maximum panel size: 1500 x 500 mm
Suspension W2053: every 700 mm
Maximum suspension height with M12 threaded rod: 600 mm
Square:
750 x 750 mm
Suspension W2053: every 600 mm
Maximum suspension height with M12 threaded rod: 600 mm

Material and surface

1 mm thick galvanised sheet steel.
Standard powder coating, white (RAL 9016 matt), layer thickness: 60 microns. Other powder coatings are possible.
