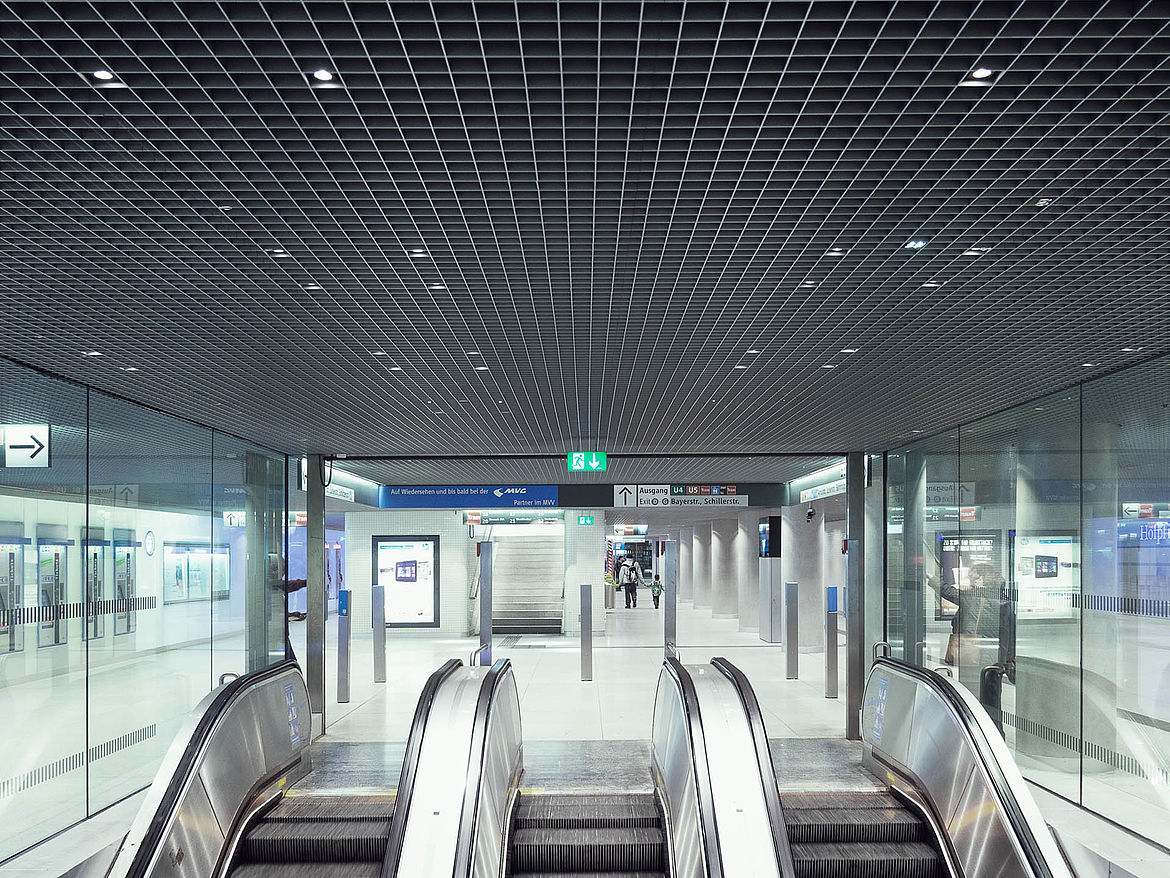

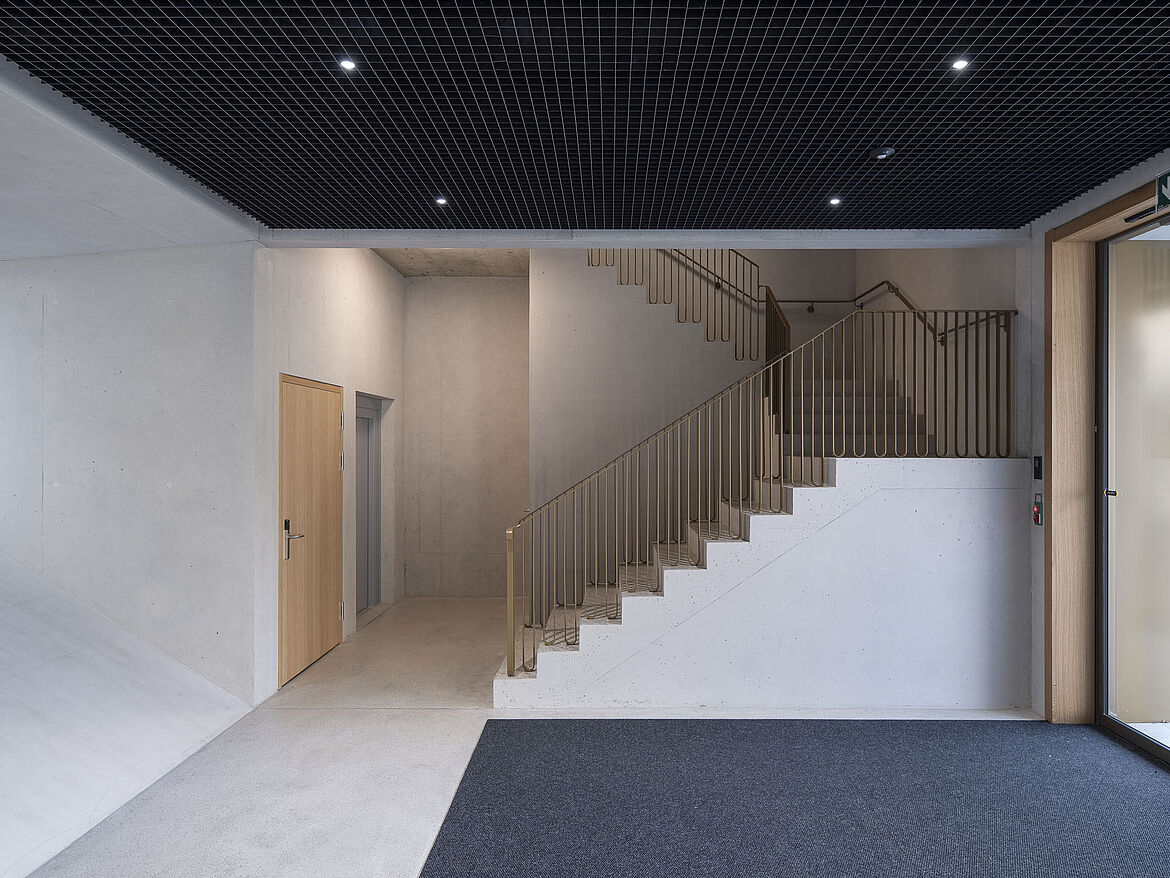

The wide-angle PUNTEO®-Q50 LED downlight delivers its lighting discretely and provides homogeneous illumination of the area. From a cell size of 75 mm and above, the compact shape of this spot light, powder-coated in black in its standard version, enables it to fit inconspicuously into the durlum GEO® open-cell ceiling without the need for a module plate.
- Available from durlum in ready-to-plug-in form, in combination with ceiling systems.

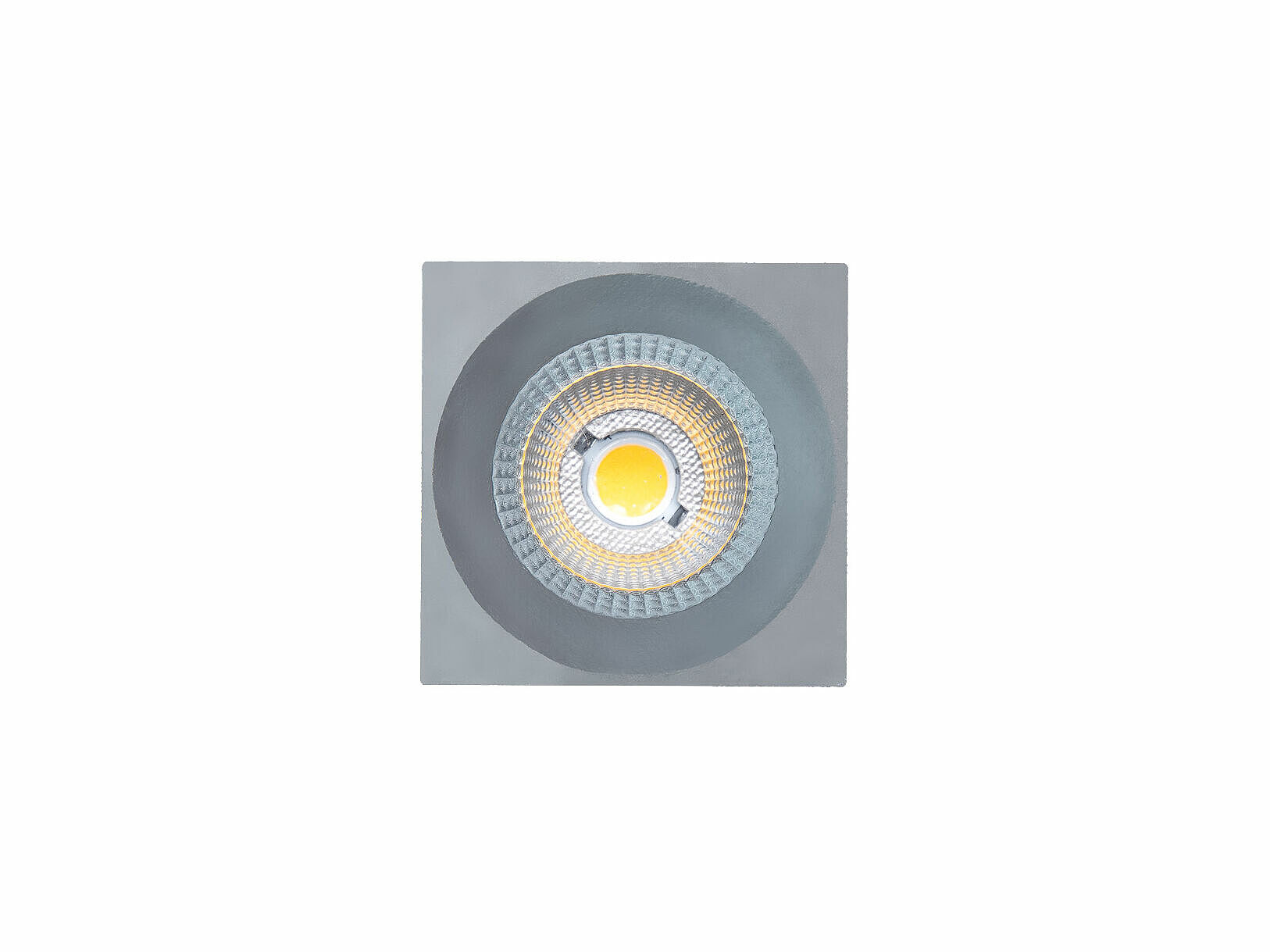

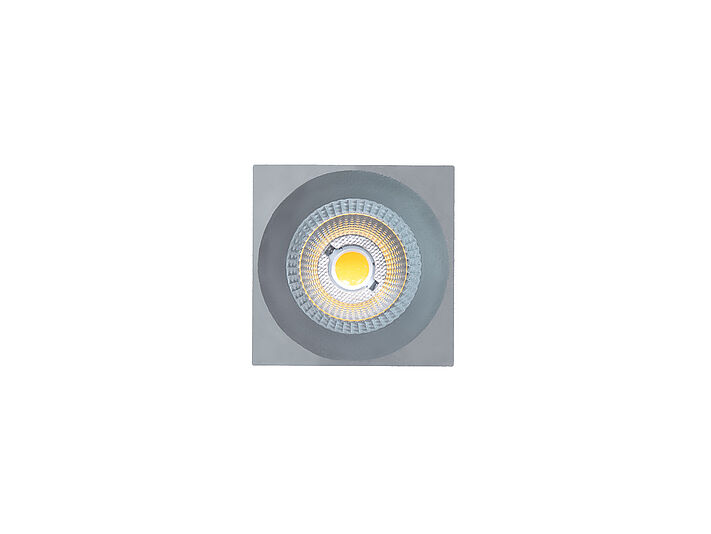

PUNTEO®-Q50
PUNTEO-Q50 luminaire details
Variant 1:
Dimensions (LxWxH): 50x50x65 mm
Light distribution: 2x45°
Light colour: 3000 K | 4000 K (CRI > 80)
LED output: 1779 lm (3000 K) | 1860 lm (4000 K)
Optical efficiency: 90 %
Variant 2:
Dimensions (LxWxH): 50x50x73.5 mm
Light distribution: 2x35°
Light colour: 3000 K | 4000 K (CRI > 80)
LED output: 1779 lm (3000 K) | 1860 lm (4000 K)
Optical efficiency: 85 %
Variant 3:
Dimensions (LxWxH): 50x50x87 mm
Light distribution: 2x25°
Light colour: 3000 K | 4000 K (CRI > 80)
LED output: 1779 lm (3000 K) | 1860 lm (4000 K)
Optical efficiency: 80 %
General technical specifications:
Housing surface: black, white
Dimmability: DALI dimmable
LED driver: external in carrier
Power supply: 500 mA CC
Protection system: IP 65
Protection class: II
